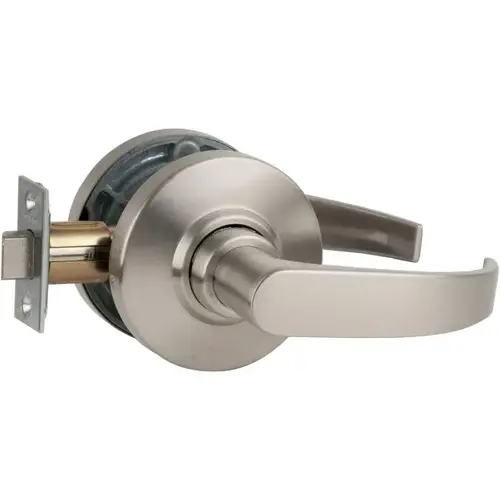

Schlage Commercial AL10S NEP 619 AL Series Passage Neptune with 11116 Latch 10025 Strike Satin Nickel Finish

Item #: AL10S NEP 619 by Schlage Commercial

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Passage - Both Levers Always Unlocked
  • Handing: Non-handed.
  • ANSI/BHMA Certified A156.2
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • 1-3/8" to 1-7/8" Door Range
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • UL Listed for 3 Hour Fire Door
  • Commercial Grade 2
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Finish

Satin Nickel

Backset

2-3/4" Backset

Strike

ASA Strike

Design

Neptune

Series

AL Series

Function

Passage

Grade

Grade 2

Color

Satin Nickel Plated Clear Coated

Color Code

619/US15

Case Length

16.375"

Origin

Mexico

BAA Qualified

Yes

Package Height

4.75"

Package Length

9.5"

Package Width

8.25"

Case Height

10"

Case Width

14.625"

Package Qty

1

Base Material

Brass or Bronze

Product Overview

Passage Function, Grade 2, Cylindrical Lock, NEP Lever, Satin Nickel

The Schlage AL Series is a Grade 2 Lock for offering dependable performance for high traffic commercial applications. AL Locks are designed to deliver ADA Compliant accessibility and constant, reliable performance. The AL Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas.

ADA compliant accessibility and constant, reliable performance.

The AL Series is a Grade 2, ADA compliant accessibility solution.
