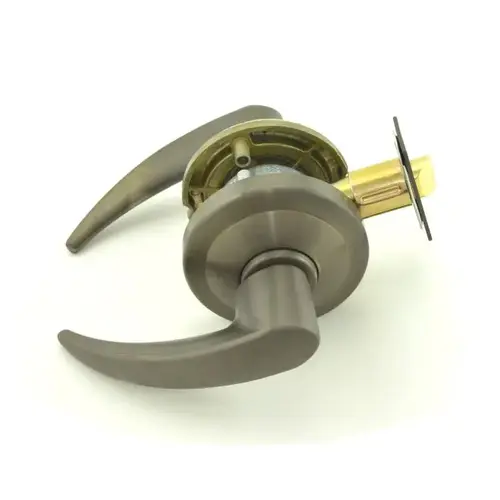

Schlage Commercial AL10S OME 613 AL10S Omega Passage Lock, Dark Oxidized Satin Bronze Oil Rubbed
Item #: AL10S OME 613 by Schlage Commercial
Brand: Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Passage - Both Levers Always Unlocked
- Handing: Non-handed.
- ANSI/BHMA Certified A156.2
- Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
- Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
- 1-3/8" to 1-7/8" Door Range
- Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
- Lock Chassis: Steel, zinc dichromated for corrosion resistance
- Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
- Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
- Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
- Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
- Warranty: Three-year limited.
Strike
ASA Strike
Function
10-Passage
Series
AL Series
Design
Omega
Backset
2-3/4" Backset
Finish
Oil Rubbed Bronze
Grade
Grade 2
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Case Length
16.375"
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75"
Package Length
9.5"
Package Width
8.25"
Case Height
10"
Case Width
14.625"
Package Qty
1
Base Material
Bronze
Product Type
Cylindrical Lock
ADA Approved
False
Product Overview
OMEGA PASSAGE LEVER 613 AL10-OME-613 11-
AL SeriesCylindrical locks
(Formerly Title 19, California State Fire Marshal Standard)
AL SeriesCylindrical locks
The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.
Specifications: Handing:- Non-handed
- 1 3/8" to 1 7/8" (35 mm to 48 mm) standard
- 2 3/4" (70 mm) standard. 2 3/8" (60 mm)
- Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard
- Steel, zinc dichromated for corrosion resistance
- Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
- Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
- ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard.
- 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
- Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
- Three-year limited
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 612 - Satin bronze
- 613 - Oil rubbed bronze
- 619 - Satin nickel
- 622 - Matte black
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 626AM - Anti-microbial coating
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.
- Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
- Meets A117.1 Accessibility Code.
- Meets FF-H-106C
(Formerly Title 19, California State Fire Marshal Standard)
- All levers with a return to door of 1/2" (64 mm) or less comply.
- All locks listed for A label single doors, 4' x 8'.
- Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
- Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
