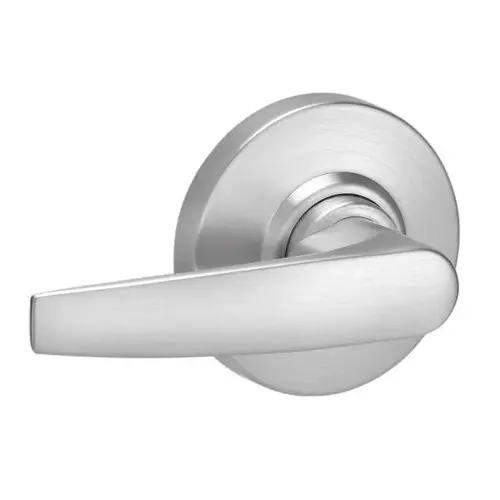

AL170 Jupiter Single Dummy Trim, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Commercial AL170 JUP 626 AL170 Jupiter Single Dummy Trim, Satin Chrome

Item #: AL170 JUP 626 by Schlage Commercial

UPC #: 043156598489

See reviewsSee reviews
See reviews summary

$120.11

/each
SAVE UP TO 12.01
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Single Dummy - Dummy Trim for One Side of Door
  • Handing: Non-handed.
  • ANSI/BHMA Certified A156.2
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • 1-3/8" to 1-7/8" Door Range
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • UL Listed for 3 Hour Fire Door
  • Commercial Grade 2
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Finish

Satin Chrome

Function

170-Single Dummy

Design

Jupiter

Series

AL Series

Grade

ANSI/BHMA Grade 2

Color Code

626/US26D

Case Length

16.375"

Origin

Mexico

BAA Qualified

Yes

Package Height

4.75"

Package Length

9.5"

Package Width

8.25"

Case Height

10"

Case Width

14.625"

Package Qty

1

Base Material

Brass or Bronze

Finish Description

Satin Chrome

Lever Style

JUP-Jupiter

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Projection

2.5000

Lever Length

4.2500

Door Thickness

1 3/8" - 1 7/8"

Bore Size

2.1250

ADA Approved

True

Door Range

1 3/8 to 1 7/8

Product Material

Zinc; wrought brass or bronze

Strike Name

No Strike Plate Required

Box Length

9.5000

Box Width

8.0000

Box Height

4.7500

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Product Overview
Inactive lever trim. 626 Satin Chrome
AL SeriesCylindrical locks

The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.

Specifications: Handing:
  • Non-handed
Door thickness:
  • 1 3/8" to 1 7/8" (35 mm to 48 mm) standard
Backset:
  • 2 3/4" (70 mm) standard. 2 3/8" (60 mm)
Front:
  • Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard
Lock chassis:
  • Steel, zinc dichromated for corrosion resistance
Latch bolt:
  • Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike:
  • ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard.
Cylinder and keys:
  • 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying options:
  • Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
  • Three-year limited
Finishes:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 619 - Satin nickel
  • 622 - Matte black
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 626AM - Anti-microbial coating
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
  • Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.
Certifications: ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
  • Meets A117.1 Accessibility Code.
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2" (64 mm) or less comply.
UL / cUL:
  • All locks listed for A label single doors, 4' x 8'.
  • Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
