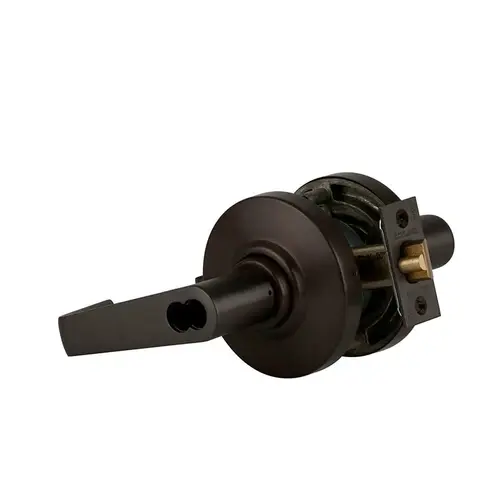

AL80BD Saturn Storeroom Lock, Dark Oxidized Satin Bronze Oil Rubbed

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Commercial AL80BD SAT 613 AL80BD Saturn Storeroom Lock, Dark Oxidized Satin Bronze Oil Rubbed

Item #: AL80BD SAT 613 by Schlage Commercial

Brand: Schlage Commercial

See reviewsSee reviews
See reviews summary
In Stock

$322.83

337.00 /each
SAVE UP TO 32.28
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available

Finish: Dark Oxidized Satin Bronze Oil Rubbed

Design: Saturn

Jupiter
Neptune
Saturn
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Storeroom - Outside Lever Fixed, Entrance by Key Only, Inside Lever Always Unlocked
  • ANSI/BHMA Certified A156.2
  • Handing: Non-handed.
  • 1-3/8" to 1-7/8" Door Range
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • UL Listed for 3 Hour Fire Door
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • Commercial Grade 2
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Finish

Oil Rubbed Bronze

Function

80-Storeroom

Backset

2-3/4" Backset

Strike

ANSI Strike

Design

Saturn

Series

AL Series

Thickness

1-3/8 In. - 1-7/8 In.

Strike Number

10-025

Package Volume

372.28125

Latch Number

11-096

Color

Dark Oxidized Satin Bronze Oil Rubbed

Case Width

14.625"

Latch Type

Dead Latch (Guarded)

ANSI Function

F86 - Storeroom

Hand

Not Handed

Grade

Grade 2

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Lock Face Size

2-1/4" x 1-1/8"

Case Length

16.375"

Package Qty

1

Package Height

4.75"

Screws

Combination

Case Height

10"

Package Width

8.25"

Case Volume

2394.84375

Color Code

613/US10B

Strike Type

ASA

Origin

Mexico

BAA Qualified

Yes

Rose/Escutcheon Design

3-7/16 In. Diameter

Base Material

Bronze

Strike Height

4-7/8"

Lever/Knob Design

SAT - Saturn

Package Length

9.5"

Product Type

Cylindrical Lock

Handing

Reversible

ADA Approved

False

Product Overview
Storeroom Lock, Keyed function, Less SFIC Core, 2-3/4" Backset Square Corner Deadlatch, 4-7/8" ANSI Strike. 613 Oil Rubbed Bronze
AL SeriesCylindrical locks

The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.

Specifications: Handing:
  • Non-handed
Door thickness:
  • 1 3/8" to 1 7/8" (35 mm to 48 mm) standard
Backset:
  • 2 3/4" (70 mm) standard. 2 3/8" (60 mm)
Front:
  • Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard
Lock chassis:
  • Steel, zinc dichromated for corrosion resistance
Latch bolt:
  • Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike:
  • ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard.
Cylinder and keys:
  • 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying options:
  • Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
  • Three-year limited
Finishes:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 619 - Satin nickel
  • 622 - Matte black
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 626AM - Anti-microbial coating
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
  • Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.
Certifications: ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
  • Meets A117.1 Accessibility Code.
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2" (64 mm) or less comply.
UL / cUL:
  • All locks listed for A label single doors, 4' x 8'.
  • Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
