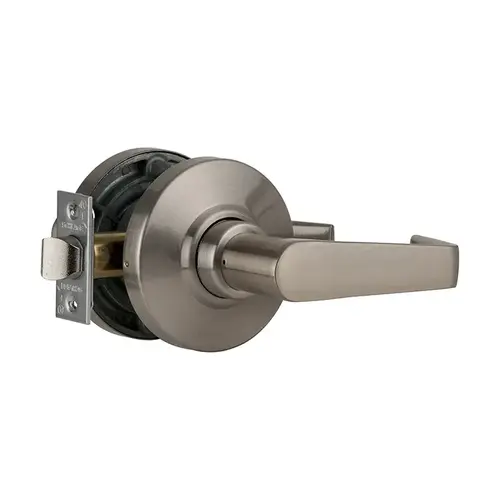

Schlage Commercial AL10S SAT 619Click To Copy AL10S Saturn Passage Lock, Satin Nickel

Passage Latch, Both levers always unlocked, 2-3/4" Backset Square Corner, 4-7/8" ANSI Strike. 619 Satin Nickel
AL SeriesCylindrical locks

The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.

Specifications: Handing:

• Non-handed

Door thickness:

• 1 3/8" to 1 7/8" (35 mm to 48 mm) standard

Backset:

• 2 3/4" (70 mm) standard. 2 3/8" (60 mm)

Front:

• Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard

Lock chassis:

• Steel, zinc dichromated for corrosion resistance

Latch bolt:

• Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions

Exposed trim:

• Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.

Strike:

• ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard.

Cylinder and keys:

• 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.

Keying options:

• Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.

Warranty:

• Three-year limited

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 612 - Satin bronze
• 613 - Oil rubbed bronze
• 619 - Satin nickel
• 622 - Matte black
• 625 - Bright chromium plated
• 626 - Satin chromium plated
• 626AM - Anti-microbial coating
• 643e - Aged bronze
• e = an equivalent finish to the BHMA standard.
• Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.

Certifications: ANSI:

• Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
• Meets A117.1 Accessibility Code.

Federal:

• Meets FF-H-106C

California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)

• All levers with a return to door of 1/2" (64 mm) or less comply.

UL / cUL:

• All locks listed for A label single doors, 4' x 8'.
• Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.

ADA compliant:

• Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
