Cylindrical Lock Bright Brass

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

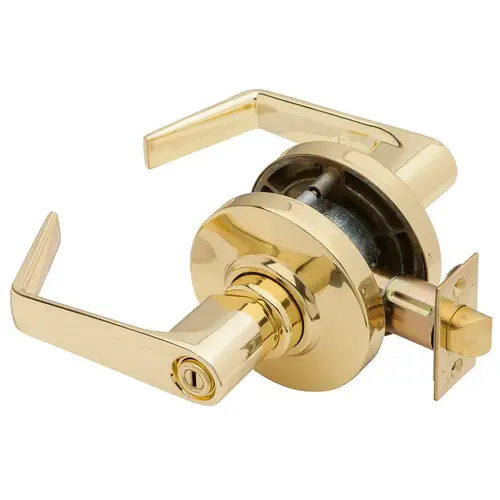

Schlage AL40S SAT 605X625 Cylindrical Lock Bright Brass

Item #: AL40S SAT 605X625 by Schlage Commercial

See reviewsSee reviews
See reviews summary
In Stock

$107.40

/each
SAVE UP TO 10.74
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing: Non-handed.
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Grade

Grade 2

Thickness

1-3/8 In. - 1-7/8 In.

Hand

Not Handed

Color

Bright Brass

Color Code

605/US3

Case Length

16.375"

Function

40-Bath Bedroom Privacy Lock

Origin

Mexico

BAA Qualified

Yes

Package Height

4.75

Package Length

9.5

Package Volume

372.28125

Package Width

8.25

ANSI Function

F76 - Privacy

Case Height

10"

Case Volume

2394.84375

Case Width

14.625"

Latch Backset Dim

2-3/4"

Latch Number

11-116

Latch Type

Spring Latch (Unguarded)

Lever/Knob Design

SAT - Saturn

Lock Face Size

2-1/4" x 1-1/8"

Package Qty

1

Rose/Escutcheon Design

3-7/16 In. Diameter

Screws

Combination

Secondary Finish

625/US26

Secondary Finish Description

Bright Chrome

Strike Height

4-7/8"

Strike Number

10-025

Strike Type

ASA

Strike Width

1-1/4"

Base Material

Brass

Fire Rated

3 Hours {A}

Product Overview

Grade 2 Bath/Bedroom Privacy Cylindrical Lock, Saturn Lever, Non-Keyed, Bright Brass x Bright Chrome Finish, Non-handed

The Schlage AL Series is a Grade 2 Lock for offering dependable performance for high traffic commercial applications. AL Locks are designed to deliver ADA Compliant accessibility and constant, reliable performance. The AL Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas.

Ideal for buildings with medium to high traffic flow, such as banks, hotel guest areas, interior office doors and retail spaces.

Featuring a Grade 2 ANSI rating, the AL Series delivers ADA compliant accessibility and reliable performance.
