ALARM.COM ADC-AC-X1100-2PSE HID Aero 2 Door Controller & Power Supply

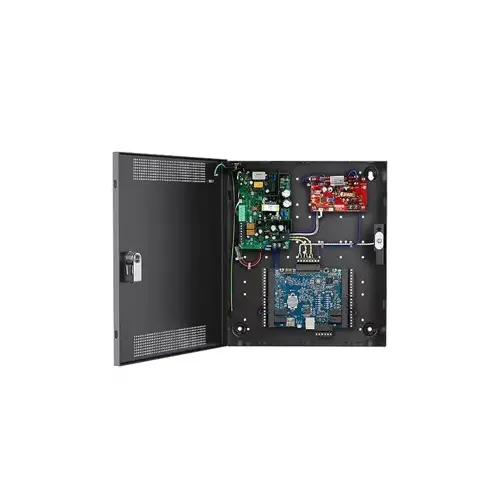

ALARM.COM X1100 Two Door Controller and Power Kit (ADC-AC-X1100-2PSE)

ALARM.COM X1100 Smarter Access Control: is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. The X1100 Two Door Controller and Power Kit comes with an X1100 Door Controller pre-wired to a 12/24 VDC dual-voltage power supply. Installation is easy with this self-contained kit that can provide power for a complete 1- or 2-door access control system.

SPECIFICAITONS:

• Input voltage: 120 / 208 / 230 VAC; 50/60 Hz.
• Main outputs: 1.5 A @ 12 VDC (B100) 1.5 A @ 24 VDC (FPV4).
• Battery charge current: 0.7 or 1.60 A Selectable.
• System BTU/hour: 34 @ 12 V, 41 @ 24 V.
• Efficiency: 85% 120 VAC 60 Hz in, full load.
• Certifications: UL294, UL603, UL1076, ULC S318, S319, CSA C22.2#107.1, CSA 22.2 #60950, RoHS Lead-free, CE Approved.
• Operating temperature: - 4°F to 122°F (- 20°C to 50°C).

• Input power: 12 to 24 VDC ± 10%, 1.9 A max.
• Communication: Shielded 2-wire RS-485.
• Inputs: Two dedicated reader inputs Four programmable inputs One dedicated input for each of the following: Tamper, AC Fail, and Battery Fail.
• Outputs: Four relay outputs 5 A (NO) and 3 A (NC) @ 30 VDC, Two-wire LED control, Single-wire buzzer output.
• Certifications: FCC, CE, UL 294 Certified.
• Dimensions (W x L x H): 6.46" x 5.51" x 1.02" (16.4 x 14.0 x 2.6 cm).
• Temperature: 32°F to 158°F (0°C to 70°C) operational, - 67°F to 185°F (- 55°C to 85°C) storage.
• Operating humidity: 5% to 85% (non-condensing) RH.

• Dimensions: 14" x 12" x 4.5" (35.6 x 30.5 x 11.4 cm).
• Weight: 13 lbs. (5.9 kg).

FINISHES:
