HID Aero 4 Door Controller & Power Supply

Roll over image to zoom in

ALARM.COM ADC-AC-X1100-4PSE HID Aero 4 Door Controller & Power Supply

Item #: ADC-AC-X1100-4PSE by ALARM.COM

See reviews See reviews

In Stock $1,991.12 /each

SAVE UP TO 199.11

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Alternate Part Number-1

178486

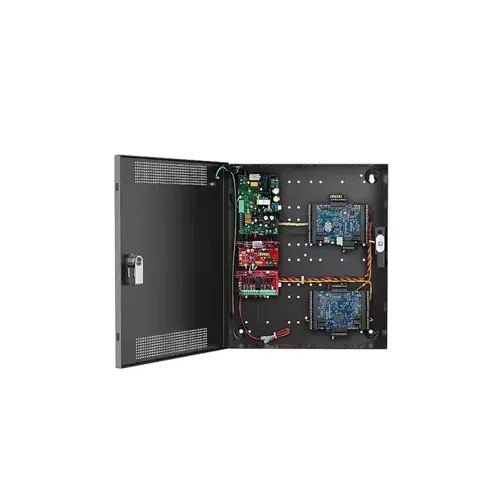

ALARM.COM X1100 Four Door Controller and Power Kit (ADC-AC-X1100-4PSE)

ALARM.COM Smarter Access Control: is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. The X1100 Four Door Controller and Power Kit comes with an X1100 Door Controller and an X100 Two Reader Expansion Module pre-wired to a 12/24 VDC dual-voltage power supply. Installation is easy with this self-contained kit that can provide power for a complete 3- or 4-door access control system.

SPECIFICATIONS:

  • Power Supply Specifications:
    • Input voltage: 120 / 208 / 230 VAC; 50/60 Hz.
    • Main outputs: 2 A @ 12 VDC, 2 A @ 24 VDC.
    • Auxiliary output: 1.5 A Class II power limited.
    • F8P distributed outputs: 2 A Class II power limited.
    • Battery charge current: 0.7 or 1.60 A selectable.
    • System BTU/hour: 34 @ 12 V, 41 @ 24 V.
    • Efficiency: 85% 120 VAC 60 Hz in, full load.
    • Certifications: UL294, UL603, UL1076 ULC S318, S319, CSA C22.2#107.1, CSA 22.2 #60950, RoHS Lead-free, CE Approved.
    • Operating temperature: - 4°F to 122°F (- 20°C to 50°C).
  • Controller Specifications:
    • Input power: 12 to 24 VDC ± 10%, 1.9 A max (Controller); 12 to 24 VDC ±10%, 1.5 A max (Expansion Module).
    • Output power: 12 VDC ± 10%, 500 mA max each reader.
    • Communication: Shielded 2-wire RS-485.
    • Inputs per device: Two dedicated reader inputs, Four programmable inputs, One dedicated input for each of the following: Tamper, AC Fail, and Battery Fail.
    • Outputs per device: Four relay outputs 5 A (NO) and 3 A (NC) @ 30 VDC, Two-wire LED control, Single-wire buzzer output.
    • Certifications: FCC, CE, UL 294 certified (Controller); UL 294 recognized, CE compliant, FCC Class A, ICES-003 (Expansion Module).
    • Dimensions (W x L x H): 6.46" x 5.51" x 1.02" (16.4 x 14.0 x 2.6 cm).
    • Temperature: 32°F to 158°F (0°C to 70°C) operational, - 67°F to 185°F (- 55°C to 85°C) storage.
    • Operating humidity: 5% to 85% (non-condensing) RH.
  • Kit Specifications:
    • Dimensions: 20" x 16" x 4.5" (50.8 x 40.64 x 11.43 cm).
    • Weight: 26 lbs. (11.8 kg).

    FINISHES:

  • » N/A - Black
