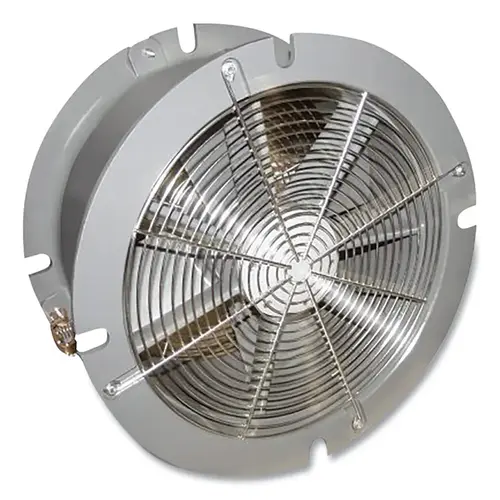

Allegro Industries, Inc 9518-20 Pneumatic Jet Fan, 20 in dia Inner, 4 Blades, 10500 ft /min, 60 to 292 SCFM, 40 to 100 psig Gray
Item #: 9518-20 by Allegro
UPC #: 741851951935
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Inlet Pressure [Min]
40 psig
Air Consumption [Min]
60 SCFM
Air Consumption [Max]
292 SCFM
Speed [Max]
10500 ft³/min
Nom. Height
9.875 in
Mounting
Side-Mounted Inlet Connector
Number of Blade
4
Minimum Diameter
20 in
Maximum Inlet Pressure
100 psig
Inlet Type
NPT
Inlet Size
3/4 in
Power Source
Pneumatic
Maximum Diameter
24.75 in
Material
Aluminum; Stainless Steel Fan Shaft
Product Overview
Heavy-duty aluminum fan can be used as a blower or exhaust by simply reverse mounting
Compressed air is pushed through a nozzle at the end of each blade creating the fan to propel at speeds up to 10,500 CFM (20-inch model) or 16,000 CFM (24-inch model) at 100 psig quickly and efficiently
Heavy-duty ball bearings are permanently lubricated and sealed for the life of the fan
A spark-resistant fan with recessed handles for easy portability or it can be rolled.
Compressed air is pushed through a nozzle at the end of each blade creating the fan to propel at speeds up to 10,500 CFM (20-inch model) or 16,000 CFM (24-inch model) at 100 psig quickly and efficiently
Heavy-duty ball bearings are permanently lubricated and sealed for the life of the fan
A spark-resistant fan with recessed handles for easy portability or it can be rolled.
