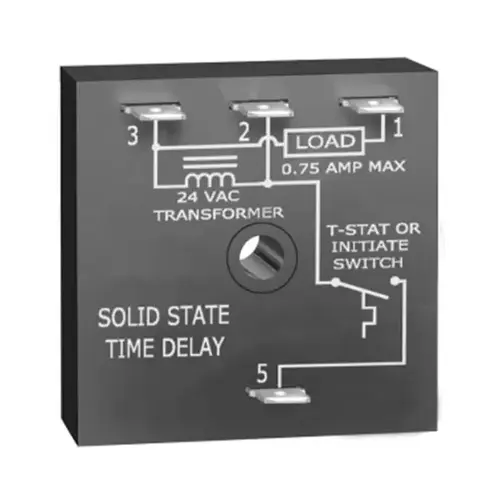

ALLIED AIR ENTERPRISES 16D74 Time Delay Relay, 24 VAC, 1-Second On-Make, 45-Second On-Break

Item #: 16D74 by ALLIED AIR ENTERPRISES

Brand: ALLIED AIR ENTERPRISES

See reviewsSee reviews
See reviews summary
In Stock

$61.03

/each
SAVE UP TO 6.10
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Model No.

16D74

Weight

0.75

Product Overview
This time delay relay, part number 16D74 and 105241-01 from Allied Air Enterprises (often cross-referenced as Lennox 16D74), is an essential electrical control device for HVAC systems. It provides both a fixed 1-second delay-on-make and a fixed 45-second delay-on-break function, crucial for optimizing fan control and sequencing in air handlers and furnaces. Operating at 24 VAC and 50/60 Hz, this solid-state, encapsulated unit is designed for reliable performance in heating and cooling applications, helping to prevent pressure surges and protect evaporator coils from freezing. It replaces part number 19W66 and features approximate dimensions of 1.21 inches deep by 2 inches high by 2 inches wide. The unit weighs approximately 0.2 to 0.75 pounds.
