The CRL Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

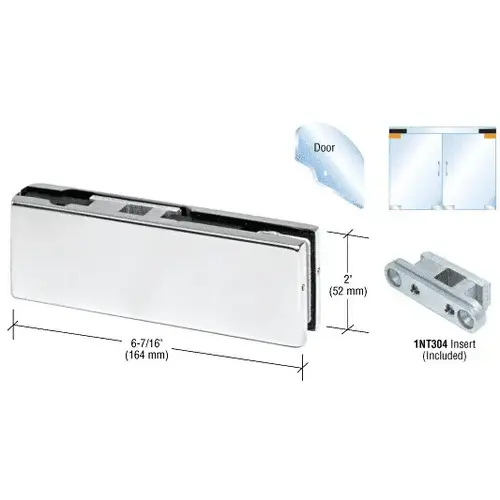

CRL PH21BA Aluminum European Top Door Patch Fitting with 1NT304 Insert Satin Anodized
Item #: PH21BA by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- European 2-9/16" (65 mm) Pivot Setback
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- High Density Cast Body
Glass Thickness
3/8" or 1/2" (10 or 12 mm)
Finish
Satin Anodized
Length
6-7/16
Glazing Thickness
3/8, 1/2
Finish/Color
Satin Anodized
Pivot Backset
2-9/16"
Height
2
Type
Top
Series
European
Insert Type
1NT304
Pivot Setback
2-9/16
With Insert
Yes
Product Overview
The CRL Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
.
