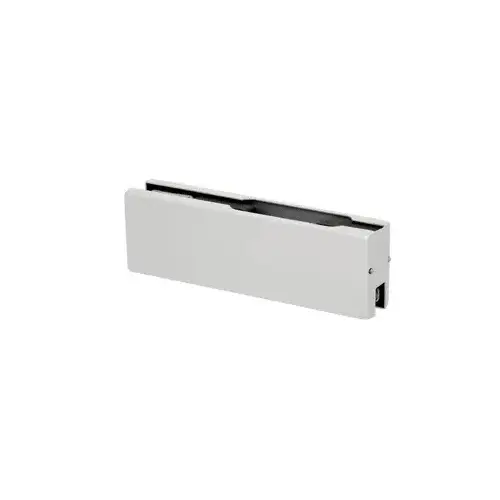

CRL AMR201A Aluminum Top or Bottom Patch Fitting - Less Insert
Item #: AMR201A by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For Use with Top and Bottom Inserts
- Gaskets for Use With 3/8" or 1/2" (10 or 12 mm) Glass
- High Density Cast Body
Shipping Weight
2 Lb (907g)
Finish
Satin Anodized
Glazing Thickness
3/8, 1/2
Finish/Color
Satin Anodized
Type
Top or Bottom
This CRL American T/B Door Patch (Less Insert will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.
For Use with Top and Bottom Inserts:
Glass Fabrication Required:
Includes:
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
