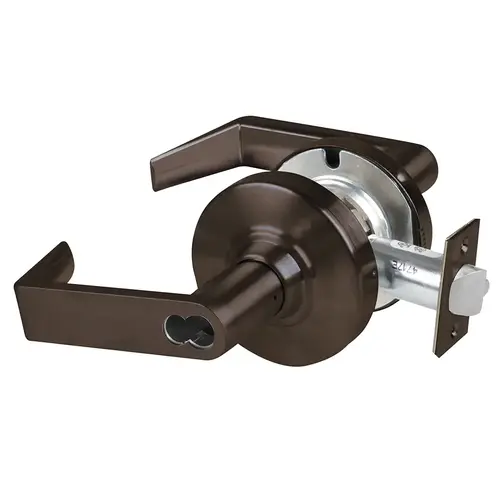

Schlage ALX80J RHO 613 Cylindrical Lock Dark Oxidized Satin Bronze Oil Rubbed
Item #: ALX80J RHO 613 by Schlage Commercial
Brand: Schlage
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Accommodates 1 3⁄8" to 1 3⁄4" door thickness with minimal chassis adjustment
- ƒƒCaptured screws in latch, strike and inside spring cage eliminate small, loose parts
Color
Oil Rubbed Bronze
Color Code
613/US10B
Fire Rated
3 Hours {A}
Origin
Mexico
Handing
Right Hand
Package Volume
372.28125
Package Height
4.75
Package Width
8.25
Package Length
9.5
Finish
Oil Rubbed Bronze
Dimension
4-9/16" Lever with 2-15/16" Projection and 3-7/16" Rose
Backset
2-3/4" Backset
Function
Storeroom
Strike
ANSI Strike
Door Range
1-3/8" to 1-3/4"
Cross Bore Size
2-1/8" Bore with Two 5/16" Post Holes
Series
ALX Series
Material
Steel, Zinc Dichromated
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Warranty
Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Rose/Escutcheon Design
Rhodes Rose
UL Listing Type
UL Listed for 3 Hour Fire Door
Hazardous Material
No
Strike Dimension
4-7/8" with 1-1/4" Lip
Finish code
613
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Rhodes Lever
No of inners
1
Substrate Type
Zinc and Steel
Door Handing
Non-Handed
Segment
Door Hardware
Duty Level
Heavy Duty
Grade
Grade 2
Collection
ALX_Series
Keyed
Yes
Handle Type
Lever
Lock Type
Cylindrical
Keying
None (Select for Less Cylinder Options)
ANSI/BHMA Standards
F86
Latch
Default - 47267042: DeadLatch, 2-3/4" Backset, 1-1/8" x 2-1/4" Square corner
Handle Design
Rhodes Lever
Standard Strike
47267101: ANSI, No Box, 1-1/4" x 4-7/8" (1-3/16" Lip Length)
Cylinder
J - FSIC Less Core
Electronic
No
Keys Included
2
Standard Latch
47267042: Dead Latch - 2-3/4" Backset - Square Corner, 1-1/8" x 2-1/4", Non-Restoring Function
Projection
2-15/16"
Product Overview
ALX Series Storeroom, Rhodes Lever, FSIC PrepLess Core, Dark Oxidized Satin Bronze Oil Rubbed
ALX gains X Factor qualities born from modular design making it a grade 2 lock unlike any other.
The Schlage ALX Series offers an unprecedented level of flexibility to every aspect of how you use it in your business. Based on a modular design and built on a single chassis, ALX also provides an advantage to all your grade 2 lock customers.
