Features
- Constructed from steel with a Champagne Bronze finish, this hinge is designed for use in cabinet and furniture hardware applications.
- Measures 2-1/2" in length and 1" in width, with a projection of 1-7/16" for standard cabinet door setups and furniture configurations.
- Designed for 3/4" door thickness and 3/4" overlay, this hinge is compatible with both frameless and face-frame cabinet door types.
- Features a non-mortise ball tip design with free-swinging motion technology, allowing for smooth cabinet door operation in daily use.
- Utilizes a screw-on mount type for installation on cabinet doors, providing a functional solution for various furniture hardware setups.
- Includes No.6 flat head screws in 5/8" and 1/2" lengths to facilitate the mounting process on cabinet frames and door structures.
- Suitable for general cabinet and furniture hardware use, this hinge provides a functional solution for cabinet door movement and alignment.
Finish
Champagne Bronze
Size
3/4" Door Thickness
Product Weight
0.12
Product Projection (mm)
37
Product Projection Fraction (in)
1-7/16
Product Length (in.)
2-1/2
Product Width (in.)
1
Master Pack Height
0
Master Pack Length
0
Master Pack Weight
0
Master Pack Width
0
Includes Hardware
#6 Flat Head Screw X 5/8In & #6 Flat Head Screw X 1/2In
Master Pack Qty
0
Product Width (mm)
25
Product Length (mm)
64
Cabinet Type
Frameless, Face-frame
Door Thickness (in.)
3/4 in
Material Type
Steel
Width (in)
1 in
Length (in)
2-1/2 in
Color/Finish
Champagne Bronze
Product Type
Non-Mortise Ball Tip Hinge
Mount Type
Screw-On
Motion Technology
Free swinging
Overlay (In.)
3/4 in
Projection (In.)
1-7/16 in
Collection Name
Full Inset
No of inners
1
Finish code
CZ
Material
Steel
Projection
1-7/16"
Manufacturer Warranty
Limited Lifetime Warranty
Hazardous Material
No
Height
0
Length
0
Weight
0
Quantity
0
Width
0
Product Overview

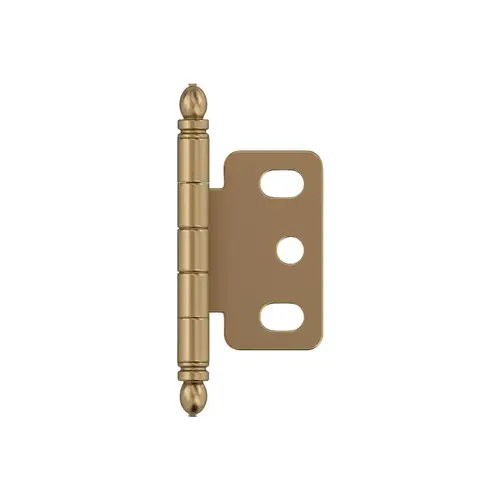

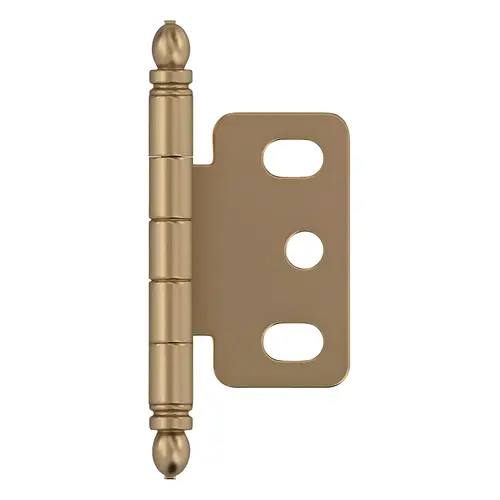

The 3/4" Full Inset Partial Wrap Ball Tip Cabinet Hinge is a non-mortise hinge designed for use with frameless and face-frame cabinets. Constructed from steel, this hinge is suitable for cabinets with a 3/4" door thickness and a 3/4" overlay. The hinge features a ball tip design and a free-swinging motion technology. It has a length of 2-1/2" and a width of 1", with a projection of 1-7/16". This screw-on mount hinge is designed for straightforward installation on cabinet doors. The Champagne Bronze finish provides a consistent aesthetic for cabinet and furniture hardware applications. The package includes No.6 flat head screws in 5/8" and 1/2" lengths for mounting. This hinge has a product weight of 0.12 lbs and is designed for non-mortise applications, which simplifies the mounting process on cabinet frames. It is suitable for various furniture hardware setups where a partial wrap hinge is required for door movement.
