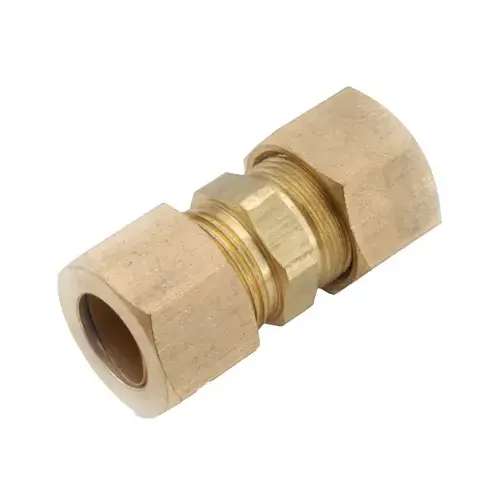

Anderson Metals 750062-05-XCP10 Pipe Union, 5/16 in, Compression, Brass, 300 psi Pressure - pack of 10

Item #: 750062-05-XCP10 by Anderson Metals

Brand: Anderson Metals

See reviewsSee reviews
See reviews summary
In Stock

$45.75

/package
SAVE UP TO 4.58
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 315 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • 2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
  • 4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
  • Three Piece Construction - Nut, Sleeve (Or Ferrule) And Body
  • To Buy Compressions Fittings with Long Nut, Please Add a "1" In Front Of The Part Number. (i.e. 68 = 168)
  • Compliant Product Which Meets Vermont SB-152
  • Easy To Disassemble, No Flaring Tool Required
  • Primary Uses: Water, Gasoline, Oil and Vacuum Lines
  • 1. Cut Smooth, Square End On Tubbing
  • 3. Insert Tube Into Fitting
  • Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
  • Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
  • Compliant Product Which Meets California AB-1953
  • Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
  • To Assemble:

Height

1.00

Length

1.00

Width

1.00

Hazardous Material

No

ECCN

EAR99

Country Origin Code

US

Material

Brass

Application

For gasoline, oil, vacuum and water lines

Operating Temperature

-65 to 250 deg F

Nominal Size

5/16"

Pressure rating

300 psi

Nomenclature

750062-05 5/16 COMPRESS UNION

Connection Type

Compression

Fitting Type

Union

Pressure Rating (psi)

300

Maximum Working Temperature (F)

250

Connection Type 2

Compression

Connection Type 1

Compression

Fitting Size 1

5/16 In. O.D.

Fitting Size 2

5/16 In. O.D.

End Connections

Compression x Compression

Maximum Working Pressure (Psi - 3 Decimals)

3000

Product Service Code

4720

Thread Size (Inch)

1/2-24

Vendor Drop Ship

N

Straight Thread Size

1/2-24

Product Overview
COMPRESSION UNION BRASS 5/16
Specifications:

Suitable for: Aluminum Brass Copper and Plastic Tubing

Anderson Metals Pipe Union, Nominal Size: 5/16 in, Compression Connection, 300 psi, Operating Temperature: -65 to 250 deg F, Brass, Suitable for: Aluminum, Brass, Copper and Plastic Tubing
