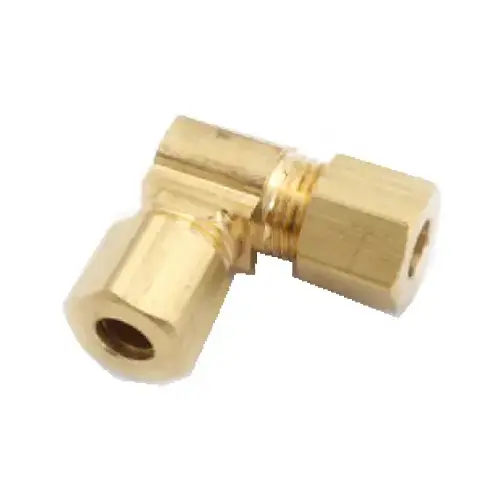

Tube Union Elbow, 1/4 in, 90 deg Angle, Brass, 300 psi Pressure - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Anderson Metals 750065-04-XCP5 Tube Union Elbow, 1/4 in, 90 deg Angle, Brass, 300 psi Pressure - pack of 5

Item #: 750065-04-XCP5 by Anderson Metals

Brand: Anderson Metals

See reviewsSee reviews
See reviews summary
In Stock

$22.14

/package
SAVE UP TO 2.21
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 380 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Easy To Disassemble, No Flaring Tool Required
  • Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
  • Primary Uses: Water, Gasoline, Oil and Vacuum Lines
  • 1. Cut Smooth, Square End On Tubbing
  • 3. Insert Tube Into Fitting
  • To Buy Compressions Fittings with Long Nut, Please Add a "1" In Front Of The Part Number. (i.e. 68 = 168)
  • 2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
  • 4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
  • Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
  • Three Piece Construction - Nut, Sleeve (Or Ferrule) And Body
  • Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
  • To Assemble:
  • Compliant Product Which Meets Vermont SB-152
  • Compliant Product Which Meets California AB-1953

Height

1.00

Length

1.00

Width

1.00

Hazardous Material

No

ECCN

EAR99

Country Origin Code

CN

Material

Brass

Application

For gasoline, oil, vacuum and water lines

Angle

90 deg

Operating Temperature

-65 to 250 deg F

Nominal Size

1/4"

Pressure rating

300 psi

Nomenclature

750065-04 COMPRESS ELBOW 1/4

Fitting Type

ELbow

Pressure Rating (psi)

300

Maximum Working Temperature (F)

250

Connection Type 2

Compression

Connection Type 1

Compression

Fitting Size 1

1/4 In. O.D.

Fitting Size 2

1/4 In. O.D.

End Connections

Compression x Compression

Maximum Working Pressure (Psi - 3 Decimals)

3000

Product Service Code

4720

Thread Size (Inch)

7/16-24

Vendor Drop Ship

N

Straight Thread Size

7/16-24

Product Overview
COMPRESSION ELBOW 1/4X1/4 LF
Specifications:

Application: For gasoline, oil, vacuum and water lines

Anderson Metals Tube Union Elbow, Nominal Size: 1/4 in, Angle: 90 deg, 300 psi, Operating Temperature: -65 to 250 deg F, Brass
