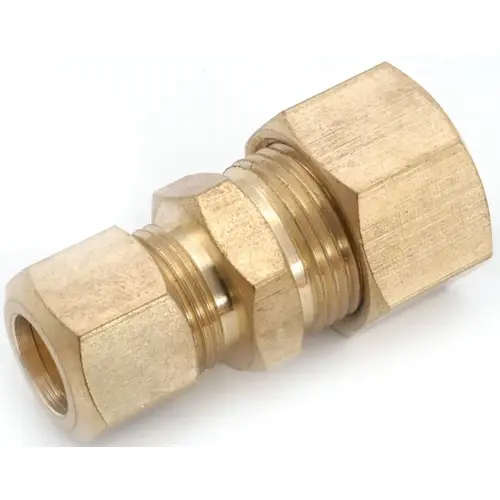

Anderson Metals 750082-0604 Tube Reducing Union, 3/8 x 1/4 in, Compression, Brass
Item #: 750082-0604 by Anderson Metals
UPC #: 719852938514
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
- 4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
- Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
- Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
- Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
- Easy To Disassemble, No Flaring Tool Required
- Primary Uses: Water, Gasoline, Oil and Vacuum Lines
- Three Piece Construction - Nut, Sleeve (Or Ferrule) And Body
- 3. Insert Tube Into Fitting
- To Buy Compressions Fittings with Long Nut, Please Add a "1" In Front Of The Part Number. (i.e. 68 = 168)
- 1. Cut Smooth, Square End On Tubbing
- Compliant Product Which Meets California AB-1953
- Compliant Product Which Meets Vermont SB-152
- To Assemble:
Height
1.00
Length
1.00
Width
1.00
Hazardous Material
No
ECCN
EAR99
Country Origin Code
US
Material
Brass
Nominal Size
3/8 x 1/4"
Pressure rating
300 psi
Nomenclature
750082-0604 COMP UNION 3/8X1/4
Connection Type
Compression
Three-piece construction, nut, sleeve and body with attached insert. Use with copper, brass, aluminum or plastic tubing. -65 deg to 250 deg F. temperature range. Easy to disassemble, no flaring tool required. Primarily used for water, gasoline, oil and vacuum lines. UPC individually bagged.
