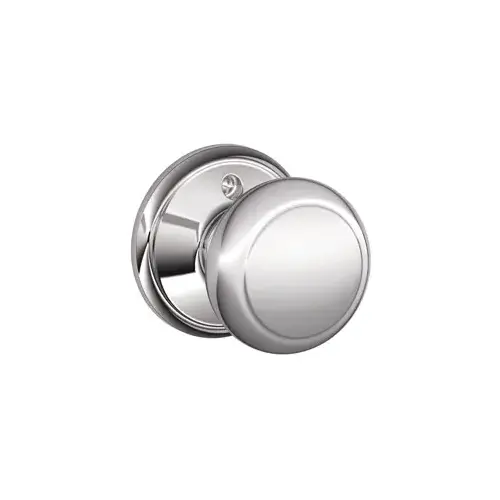

Schlage Residential F170 AND 625 Schlage Residential F Ser Dmy No Hand Bright Chrome Finish Andover Knob
Item #: F170 AND 625 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156117383
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Half Dummy Function - Dummy Trim for One Side of Door
- Applications: Residential single- and multi-family doors
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Easy 3-Step Installation, Only a Screwdriver Needed
- Quality Materials and Construction for Exceptional Security
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
Finish
Polished Chrome
Series
F Series
Function
Dummy/Inactive
Design
Andover Knob
Color Code
625/US26
Finish Description
Bright Polished Chrome
Knob style
AND-Andover
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Grade
ANSI/BHMA Grade 2
Projection
2.3125
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.2500
Included Components
Dummy Lever; Rose; Mounting Hardware
Product Material
Zinc
Box Length
3.8800
Box Width
3.6000
Box Height
2.7700
For Door Thickness
1-3/8" to 1-3/4"
Manufacturer Parent
Allegion
Knob Style Family
Round Flat Knob
Sub-Series
F170-AND
ADA Compliant
No
Product Height
2-3/4 Inch
Application
Residential Single and Multi-Family Doors
Box Dimensions (L x W x H)
2.77x3.60x3.88"
Function Family
Dummy
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015
Product Projection
2-5/16 Inch
Features
Non Locking; Ideal for Closets and Rooms where Locking is Not Needed; Quality Materials and Construction for Exceptional Security; Quality Finishes Coordinate with Plumbing and Lighting
Bolt Throw
1/2"
Warranty
Lifetime Mechanical/Finish
Finish Family
Polished Chrome
Collection
Andover
Package Height
2.77"
Package Length
3.88"
Package Width
3.6"
Item Weight
0.59 lbs
Pack Size
1
Material
Brass
Package Quantity
1
UL Listed
Yes
Keying
Non-Keyed
Backset Size
2-3/8 in., 2-3/4 in., Adjustable
UNSPSC
46171503
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Lockset Function
Dummy
ANSI/BHMA Standards
F75
Keyed
No
Handle Type
Knob
Handle Design
Andover Knob
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-080: Spring Latch, Dual Option (Round, Drive-in)
Rose Design
Alden Rose
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" Diameter Rose
Handing
Reversible
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Hazardous Material
No
Finish code
625
Lever Knob Design
Andover Knob
No of inners
1
Product Overview
The Schlage Andover Knob Non-Turning Lock in Bright Chrome is commonly used as a decorative pull for doors that don't require latching. The Andover knob is traditional but versatile, with delicate details and subtle hint of elegance. The smooth, mirror-like finish of Bright Chrome gives the knob a dramatic allure that never fails to make a statement. Plus, it's been designed and tested with strength and durability in mind.
