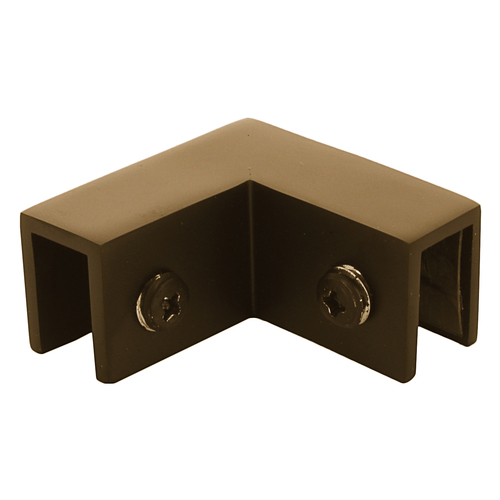

CRL S0GC90ABR Antique Brass 90 Degree "Sleeve Over" Glass Clamp
Item #: S0GC90ABR by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Solid Brass
- Use Monolithic Tempered Glass
- Assists With Shear Forces
- Holds Glass Panels in Position While Sealant Cures
Height
1 in (25 mm)
Width Per Leg
2-1/16 in (52 mm)
Finish
Antique Brass
Material
Brass
Type
90 Degree
Mounting Type
Glass To Glass
Glazing Thickness
5/16 To 1/2
Glass To Glass Angle (Degrees)
90
Finish/Color
Antique Brass
Mounting Style
Glass To Glass
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
P612** replacement screws
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required
NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales for more details.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
