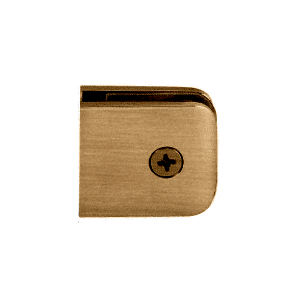

CRL R0M79ABR Antique Brass Roman Style Oversized Fixed Panel U-Clamp

  • Use Monolithic Tempered Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps
See Full Product Description
SALE

$33.54 /each

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE
+
In stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Use Monolithic Tempered Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps

  • Product Description
  • Technical Details 7
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Height

1-15/16" (49 mm)

Minimum Order

1 Each

Glass Thickness Range

5/16" to 1/2" (8 to 12 mm)

Width

1-3/4" (44 mm)

Size

1-3/4" (44 mm) Wide x 1-15/16" (49 mm) High

Finish

Antique Brass

  • Use Monolithic Tempered Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps
CRL Roman Series Fixed Panel U-Clamps are used to secure fixed panels of glass to walls, floors, and ceilings. The rounded corners give the clamp a "softer" design and creates a classy look. One mounting screw per clamp is included. They perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness (from the edge of the glass to the closest edge of the hole) is required. Custom finishes are available on request by contacting DK Hardware Sales Shower Door Department.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screw Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
