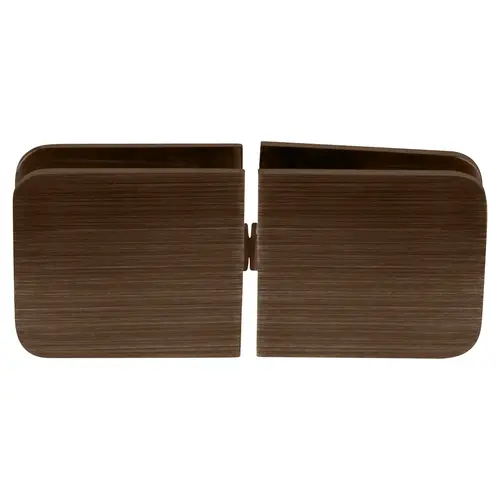

CRL GCB188ABRZ Antique Bronze Traditional Movable Glass-To-Glass Transom Glass Clamp
Item #: GCB188ABRZ by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Glass-to-Glass Application
- Special Nylock Nut Allows Pivoting of Clamps
Width
3-15/16 in (100 mm)
Hole Size Required in Fixed Panel Notch in Transom
5/8 or 3/4 in (16 to 19 mm)
Height
1-3/4" (44.5 mm)
Size
3-15/16" (100 mm) Wide x 1-3/4" (44 mm) High
Finish
Antique Bronze
The Traditional 180 Degree Glass-to-Glass Movable Transom Clamp is designed to pivot transom panels above the shower door. Clamp should be centered on glass for optimum performance. Replacement parts are Cat. Nos. 90295A120 (Nylon Washer), 193004 (Nylon Lock Nut), 211039 (Flat Head Screw), and UCG77 (Gaskets).
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Glass Fabrication Required: 5/8" or 3/4" (16 or 19 mm) diameter hole in fixed panel and a notch in transom.
Includes: Gaskets
NOTE: Maximum transom size is 12" x 30" (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details. Important Notes: Maximum transom size is 12" (305 mm) high x 30" (762 mm) wide. Larger transoms require the use of pivot hinges used as a transom clamp. Contact Technical Sales Shower Door Department for details.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Glass Fabrication Required: 5/8" or 3/4" (16 or 19 mm) diameter hole in fixed panel and a notch in transom.
Includes: Gaskets
NOTE: Maximum transom size is 12" x 30" (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details. Important Notes: Maximum transom size is 12" (305 mm) high x 30" (762 mm) wide. Larger transoms require the use of pivot hinges used as a transom clamp. Contact Technical Sales Shower Door Department for details.
