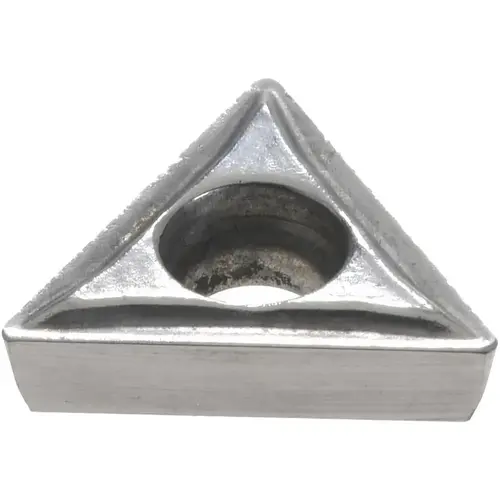

Turning Insert: TPGH21.51 C5&C6, Solid Carbide Bright/Uncoated

Roll over image to zoom in

APT TPGH21.51 C5/C6 Turning Insert: TPGH21.51 C5&C6, Solid Carbide Bright/Uncoated

Item #: TPGH21.51 C5/C6 by APT

UPC #: 728012516424

See reviewsSee reviews
See reviews summary
In Stock

$13.81

/each
SAVE UP TO 1.38

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

TPGH

Side Clearance

Positive

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

TPGH21.51

Material Grade

C6

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4330

Coating Classification

Uncoated

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4330

Insert Thickness (Decimal Inch)

0.0937

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.1442

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/64

Insert Shape

T - Triangle

Clearance Code

P

Full Radius

No

Insert Shape Code

T

Chip Breaker

Common

Insert Style

TPGH

Insert Size Code

21.51

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1200

Relief Angle

11

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Chip Breaker Operation

Medium Machining

Manufacturer Grade

C5/C6

ISO Size Code

110204

Length Range (Decimal Inch)

0.4000 - 0.5000

ANSI Size Code

21.51

Inscribed Circle (mm)

6.35

ISO Insert Code

TPGH110204

Proprietary Coating Designation

Uncoated

ANSI Insert Code

TPGH21.51

Product Overview
Turning Insert: TPGH21.51 C5&C6, Solid Carbide 0.094" Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series TPGH
