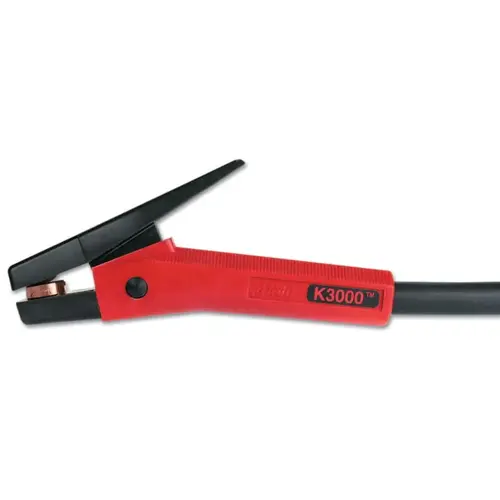

ARCAIR 61065006 Extreme K3000 Air Carbon Arc Gouging Torch and Cable, 3/8, 7 ft Cable w/ Hook up
Item #: 61065006 by ARCAIR
UPC #: 608246364568
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Accepts Flat Carbons [Min]
3/8 in
Accepts Pointed Carbons [Min]
3/8 in - 5/32 in; 5/8 in - 3/16 in
Angle [Nom]
15°
Accepts Pointed Carbons [Max]
3/8 in
Accepts Flat Carbons [Max]
5/32 in - 3/8 in
Flow [Nom]
22 CFM
Pressure [Nom]
80 psi
Cable Length [Nom]
7 ft
Process
Air Carbon Arc Gouging
Series
K3000
Maximum Amps
600 A
Applications
Medium-Duty Fabrication; Maintenance; Railroad; Sh
Head Type
Round; Flat
Type
Medium Duty
Product Overview
Heavy-duty insulators, lever, and handle that are all made from fiberglass reinforced thermoset polyester molding compound to withstand the heat and be impact resistant
Forged one-piece brass alloy body machined to close tolerances on the valve and head seat
Head assembly machined from copper alloy having four air holes optimizing the air flow to the arc
Balanced to pivot at the center of the handle for ease of use for all gouging positions, and thereby reduces operator fatigue
Lever spring rated at 146 lbs
per inch providing excellent clamping pressure on the air carbon-arc electrode.
Forged one-piece brass alloy body machined to close tolerances on the valve and head seat
Head assembly machined from copper alloy having four air holes optimizing the air flow to the arc
Balanced to pivot at the center of the handle for ease of use for all gouging positions, and thereby reduces operator fatigue
Lever spring rated at 146 lbs
per inch providing excellent clamping pressure on the air carbon-arc electrode.
