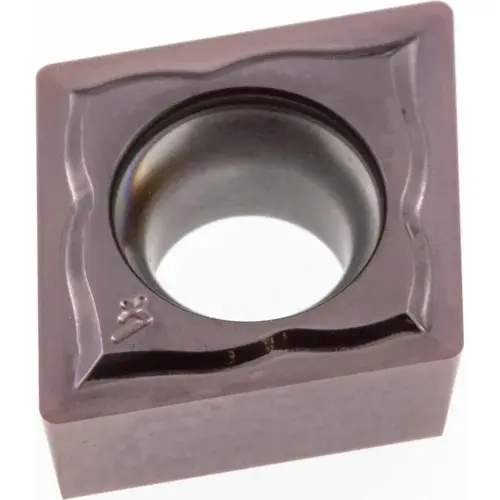

Arno 111468-XCP10 Turning Insert: CCGT21.50.5FNPS AM5020, Solid Carbide - pack of 10
Item #: 111468-XCP10 by Arno
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
2
Standards
ANSI
Insert Thickness
2.38
Included Angle
80degree
Insert Material
Carbide
Series
CCGT
Coating Process
PVD
Coating/Finish
PVD
Corner Radius (Decimal Inch)
0.0079
Manufacturers Catalog Number
111468
Material Grade
M10
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2500in
Width (Inch)
1/4in
Width (mm - 2 Decimals)
6.35
Coating Classification
PVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.2593
Insert Thickness (Decimal Inch)
0.0937
Insert Thickness (Inch)
3/32
Maximum Depth of Cut (Decimal Inch)
0.0236
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.2500
Insert Length (mm)
6.45
Corner Radius (Inch)
1/128
Insert Shape
Diamond 80
Clearance Code
C
Full Radius
No
Insert Shape Code
C
Chip Breaker
PS
Secondary Workpiece Material Code
P
Insert Style
CCGT
Insert Size Code
21.50.5
Tolerance Code
G
Hole Diameter (Decimal Inch)
0.2500
Relief Angle
7
Inscribed Circle (Inch)
1/4
Multi-Use Application
Turning
Maximum Depth of Cut (mm)
0.60
Manufacturer Grade
AM5020
Inscribed Circle (mm)
6.35
Corner Radius (mm)
0.20
Proprietary Coating Designation
TiAIN
Iso Code
CCGT 060202FN-PS
Product Overview
Turning Insert: CCGT21.50.5FNPS AM5020, Solid Carbide Neutral, 6.45 mm Long, 6.35 mm Inscribed Circle, 0.2 mm Corner Radius, 80 degree Diamond
