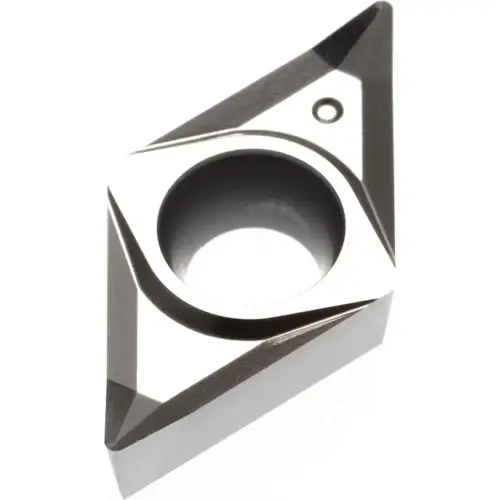

Arno 14561 Turning Insert: DCGT32.50.4FN-ALU AK10, Solid Carbide Bright/Uncoated
Item #: 14561 by Arno
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
2
Standards
ANSI
Insert Thickness
3.97
Included Angle
55degree
Insert Material
Carbide
Series
DCGT
Coating Process
Uncoated
Coating/Finish
Bright/Uncoated
Corner Radius (Decimal Inch)
0.0039
Manufacturers Catalog Number
14561
Material Grade
N05
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Width (mm - 2 Decimals)
9.53
Coating Classification
Uncoated
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.9134
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Maximum Depth of Cut (Decimal Inch)
0.0591
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Cast Iron
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3748
Insert Length (mm)
11.60
Insert Shape
Diamond 55
Clearance Code
C
Full Radius
No
Insert Shape Code
D
Chip Breaker
ALU
Secondary Workpiece Material Code
K
Insert Style
DCGT
Insert Size Code
32.50.2
Tolerance Code
G
Hole Diameter (Decimal Inch)
0.1732
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Turning
Maximum Depth of Cut (mm)
1.50
Manufacturer Grade
AK10
Inscribed Circle (mm)
9.53
Corner Radius (mm)
0.10
Proprietary Coating Designation
Uncoated
Iso Code
DCGT 11T301FN-ALU
Product Overview
Turning Insert: DCGT32.50.4FN-ALU AK10, Solid Carbide Uncoated, Neutral, 11.6 mm Long, 9.53 mm Inscribed Circle, 0.1 mm Corner Radius, 55 degree Diamond
