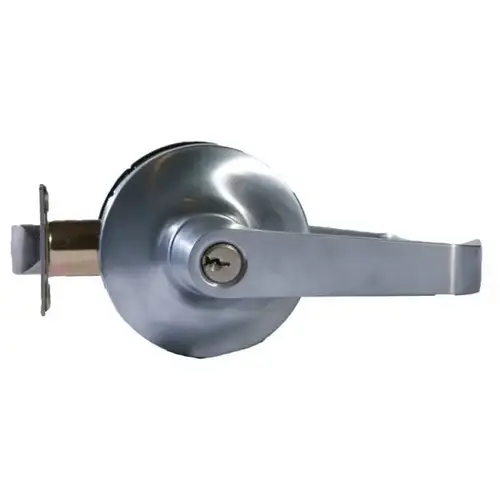

Arrow Lock GL82SR 26D Co. Grade 1 Cylindrical Lever Latchset. Storeroom Satin Chrome
Item #: GL82SR 26D by Arrow Lock
Brand: Arrow Lock
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Arrow Lock Co. Grade 2 Cylindrical Lever Latchset. Storeroom
- Arrow Grade 1 Storeroom Function Ansi F87 In 626 Satin Chrome (26d)Finish Sierra Lever Trim Design 2-3/4 Backset With Ansi Asa 4-7/8 Strike Standard Key In Lever Arrow A Keyway W/2 Keys
- Ansi, Ul And Ulc Listed
- MFG# GL82SR 26D
Finish
Satin Chrome
Style
Flat With Return
Package Quantity
1
Keyway
SFIC
Handle Type
Lever
Door Thickness
1.3 - 2 in.
UL Listed
No
Keying
Keyed
Interchangeable Core
Interchangeable Core
ADA Compliant
YES
Commercial/Residential
Commercial/Residential
Door Handing
Non-Handed
Backset Size
2-3/4 in.
Security Grade
ANSI Grade 1
UNSPSC
46171500
MADE IN THE USA
Yes
Assembled Product Height
3.5 in.
Assembled Product Width
3 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Lockset Function
Storeroom
Grade
Grade 2
ANSI/BHMA Standards
F86
Keyed
Yes
Latch Faceplate
1-1/8" x 2-1/4"
Cylinder Type
Standard Conventional Cylinder
Standard Strike
306 ASA ANSI Strike, 4-7/8" x 1-1/4"
Door Thickness Range
1-3/4" to 2"
Fasteners
Wood and Machine Screws
Lock Type
Cylindrical
Standard Latch
G71 Deadlatch; 2-3/4" Backset
Product Overview
ARROW GL Series Cylindrical Locksets
Arrow GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA compliance.
The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.
Standard features
- Housing:Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert. This offers fantastic support for a ridged feel without excess movement. Standard bearing sleeves used on most other Arrow lever series are not used on the GL.
Requires standard 2-1/8" (53.97mm) bore through door. - Thru-Bolts:Removable thru-bolts standard on GL Series.
- OverDrive: Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked. Built-in stops in the rose insert prevent lever from traveling beyond approximately 70 degrees.
- Backset:2-3/4" (69.85mm) standard. See price book for alternate backsets.
- Latch: Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required.
- Latch Front: Brass and stainless steel. 2-1/4" (57.15mm) x 1-1/8" (28.57mm), 1/8" (3.175mm) in 2" (50.8mm).
- Exposed Trim: Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.
- Rose Inserts: Contain coil spring which is a permanent assembly within rose insert. Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts. There are no special retention features added to the rose insert that align the scalp.
- Strike: Brass and stainless steel. ANSI A115.2, 4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip strike standard.
- Door Thickness: 1-3/8" (34.92mm) to 2" (50.8mm).
- Handing: Non-Handed
