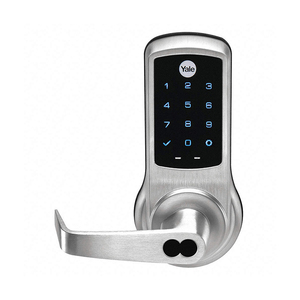

Yale AU-NTB620-NR 626 LC Electric Cylindrical Lock Satin Chrome
Item #: AU-NTB620-NR 626 LC by Yale
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Certified ANSI/BHMA A156.2, Series 4000 Grade 1.
- Functions are UL/cUL Fire Listed for use on fire doors having a rating up to and including 3 hours.
- 2-3/4" (70mm) standard backset, 2-3/8" backset optional.
- nexTouch™ uses a cylindrical lock with lever door preparation with the addition of one 1" hole.
- Standard door thickness is 1-3/4" (44mm). For use on 1-3/8" thick doors, a special thin door kit must be used.
- The nexTouch features Yale's Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.
- Powered by 4 AA alkaline batteries with optional hardwire inputfor 9VDC external power.
- Choice of capacitive touchscreen or tactile pushbutton keypad.
- Ergonomic, easy-to-use design.
- Keyless entry and management.
- PIN code access.
- Modular technology.
- Works with cloud-based management software.
- 9V battery power backup feature.
- Hardwire power capable.
Color
Satin Chrome
Hand
Not Handed
Grade
Grade 1
Special Marks
Conventional cylinder, Complies with ADA accessibility guidelines
Strike Width
1-1/4 In.
Latch Backset Dim
2-3/4 In.
Operating Voltage
4 AA Batteries
Cylinder Type
Conventional Cylinder
Application
Capacitive Touchscreen
Package Qty
1
Door Thickness
1-3/4 In.
Color Code
626/US26D
Strike Height
4-7/8 In.
Lever/Knob Design
AU - Augusta
Power
Battery Pack
NexTouch Keypad Access Lock, Capacitive Touchscreen, Augusta Lever, Less Cylinder, Satin Chrome
Unlock whatÕs next in security with nexTouch commercial keypad door locks from Yale. The nexTouch keyless electronic door lock combines a modern look with durability that is perfect for your multi-family property, small business office space, retail storefront, hotel, airport, restroom, or mixed-use commercial building. With a heavy-duty design and ANSI/BHMA Grade 1 certification, nexTouch keypad locks provide durable and reliable security from Yale Door Locks Ð a trusted brand for over 170 years.
ANSI/BHMA Grade 1 Certified Keypad Lock
The stand-alone nexTouch boasts a wide range of robust features to make setup and daily access easy and convenient. Voice guided programming: Advanced voice-guided programming makes setting up your nexTouch straightforward and effortless. Up to 25 users: Without any additional modules, the stand-alone nexTouch has the capacity to store up to 100 users plus a master code. The Data-on-Card capabilities of nexTouch coupled with user-friendly Yale Accentra™ software enable easy, affordable lock management for multi-family properties. And the nexTouch is a perfect small business solution that allows you to implement simple access control by wirelessly integrating your nexTouch into new or existing commercial automation systems.
Ideal for: Management offices, Restrooms, Staff lounges, Access to airport apron, Storage closets, New construction or renovation projects of multi-family facilities with individual units and common areas, Small to medium-sized businesses with new or existing automation systems
