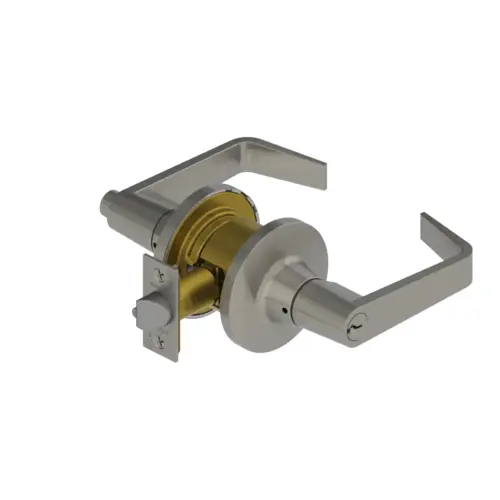

Hager 026836 3653 August Lever Office / Entry Tubular Lock Satin Chrome Finish
Item #: 026836 by Hager
UPC #: 041359268369
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Grade 2 Tubular Keyed Entry Set With August Lever
- Suitable For Heavy Duty Residential Use Or Medium Duty Commercial Use
- Non-Handed
- 2-3/8" To 2-3/4" Adjustable
- Cast Zinc Levers
Finish
Satin Chrome
Strike
ASA Strike
Backset
2-3/8" or 2-3/4"
Series
Hager 3600 Series
Design
August Lever
Function
Office / Entry
Warranty
Five-Year
Door Thickness
1-3/8" - 1-3/4" (35 mm - 45 mm)
Rose Diameter
2-15/16" (75 mm)
Keyway
Schlage C - Standard, other keyways optional
Strikes
- 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
- Optional strikes available
Notes
- No exposed mounting screws
- Non-handed
Latchbolt Type
- 1/2" (13 mm) throw, stainless steel
- 1" x 2-1/4" (25 mm x 57 mm) faceplate
- Deadlocking latchbolt prevents manipulation when door is closed
- Square corner faceplate standard, round corner optional
Backsets
Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)
LEVER / CYLINDER PINNING
AUGUST LEVER
FINISHES - LOCKS
US26D - SATIN CHROMIUM
Exposed Trim
- Rose - Wrought brass, bronze, and stainless steel
- Lever - Zinc based, plated to match BHMA symbols
Lever Options
Archer, August and Withnell
LATCH OPTIONS / CAMS / TAILPIECES
STANDARD
KEYWAY - LOCKS
SCHLAGE C
MISC. - LOCKS
NOT APPLICABLE
STRIKES - LOCKS
ASA STRIKE - STANDARD 1-5/16in. LIP
KEYING - LOCKS
KEYED DIFFERENT
Dimension
3-11/32" Rose Diameter; 4-1/2" Lever Length; 2-21/32" Projection
Material
Zinc Lever, Wrought Brass Rose, and Steel Chassis
Manufacturer Warranty
Limited 5 Year Warranty and 1 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
UL Listing Type
UL/cUL Listed for all functions up to 3 Hours
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Cross Bore Size
2-1/8" Bore
Finish code
US26D
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
August Lever
No of inners
1
No Of Pins
6 Pin Cylinder
Product Overview
Applications:
- Medium Duty Commercial
- Heavy Duty Residential
Certifications:
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- BHMA Certified ANSI A156.2, Series 4000, Grade 2
Finishes:
US3, US4, US10B, US26, US26D
Functions:
Entry/Office (F82A)
Notes:
- No exposed mounting screws
- Non-handed
Options:
Split Finish
Warranty:
Five-Year
Cylinders/Cores:
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
