3810 August Lever with Escutcheon Passage Mortise Lock Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

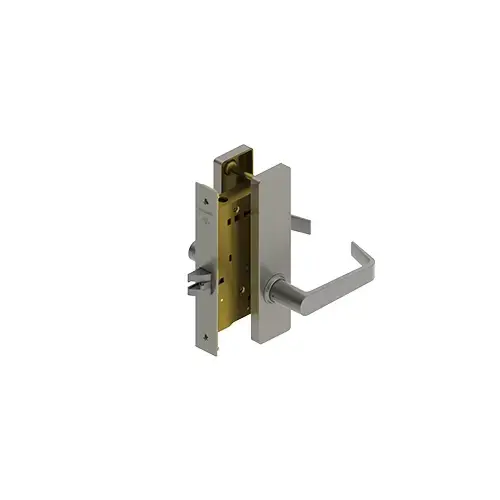

Hager 141107 3810 August Lever with Escutcheon Passage Mortise Lock Satin Chrome Finish

Item #: 141107 by Hager

UPC #: 798550411079

See reviewsSee reviews
See reviews summary
In Stock

$265.46

/each
SAVE UP TO 26.55
Buying in bulk

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Grade 1 Escutcheon Mortise Passage Door Lever Set With August Lever
  • Constructed Of Cast Stainless Steel
  • Stainless Steel Cylinder Collar Prevents Wrenching
  • Breakaway Spindle Design Prevents Damage To Body
  • Ada Compliant

Function

Passage

Finish

Satin Chrome

Backset

2-3/4"

Strike

ASA Strike

Series

Hager 3800 Series

Design

August Lever with Escutcheon

Warranty

Lifetime

Door Thickness

  • 1-3/4" - 2-1/2" (45 mm - 64 mm)
  • Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep

Strikes

  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available

Notes

  • No exposed mounting screws
  • Concealed thru-bolts
  • Body is easily field reversible (shipped LHR by default)
  • Self adjusting case for beveled doors

Latchbolt Type

3/4" (19 mm) throw with anti-friction tongue, all stainless steel

Backsets

2-3/4" (70mm)

STRIKES - MORTISE LOCKS

STANDARD ASA STRIKE 1-1/4in. LIP

MISC. - MORTISE LOCKS

NOT APPLICABLE

ARMOR FRONT - MORTISE LOCKS

STANDARD ARMOR FRONT

Exposed Trim

  • Cast Zinc -Standard
  • Cast Stainless Steel - Optional for Withnell (WTS) and William (WLS) only

Lever Options

Archer, August, Charles, Johnston, Joshua, Louis, Warren, William, and Withnell

Escutcheons

1-15/16" x 8" (50 mm x 203 mm)

CTC Length

3-5/8" (92mm)

Lock Chassis

4-5/16" x 6" x 1" (110 mm x 152 mm x 25 mm)

LEVER STYLE - MORTISE LOCKS

US26D - SATIN CHROMIUM

FINISHES - LOCKS

US26D - SATIN CHROMIUM

DOOR THICKNESS - MORTISE LOCKS

STANDARD 1-3/4in. DOOR

Product Overview

Functions:
Passage (F01)
Applications:
  • Heavy Duty Commercial
  • Industrial
  • Institutional

Notes:
  • No exposed mounting screws
  • Concealed thru-bolts
  • Body is easily field reversible (shipped LHR by default)
  • Self adjusting case for beveled doors

Certifications:
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.13, Series 1000, Grade 1

Finishes:
  • US3, US4, US10B, US26, US26D, US32D*
  • *US32D look on a cast zinc lever
  • Withnell and William are the only lever options available in both zinc and stainless steel. For stainless steel, reference Withnell (WTS) or William (WLS) at the time of order.
  • US3, US4 and US26 subject to extended lead time

Options:
  • Tactile Warning
  • Lead Lining
  • Split Finish
  • Factory Handing Available (if specified)
  • Request to Exit (RX)

Warranty:
Lifetime
