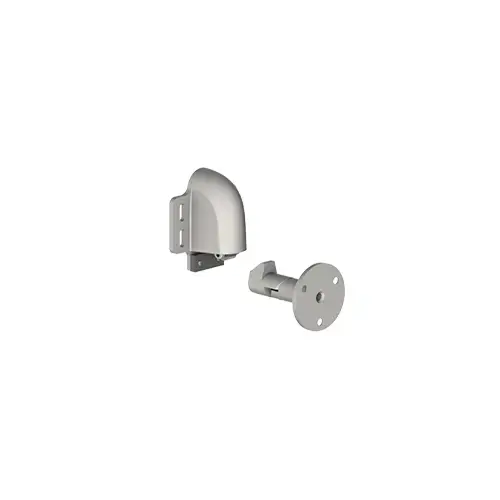

Hager 098612 327W Automatic Wall Stop and Holder with 3-1/16" Strike Projection, Satin Chrome Finish

Item #: 098612 by Hager

UPC #: 041359986126

See reviewsSee reviews
See reviews summary
In Stock

$111.18

/each
SAVE UP TO 11.12
Buying in bulk

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • For Use On Wood/Metal Doors And Dry Wall Or Concrete Walls
  • Strike Is Adjustable 45 Degrees Left Or Right
  • Holder Has Vertical Adjustment Once Mounted
  • Ideal For Locksets With Projection Of 3" Or Less
  • Cast Brass

Finish

Satin Chrome

Series

Hager Trim and Auxiliary Series

Material

Cast Brass

Holder Projection

1-15/16" (49 mm)

Strike Projection

3-1/16" (78 mm)

Fasteners

  • Three #14 x 1-1/2" FPHWS
  • Three 1/4-20 x 3/4" FPHMS
  • Four 12-24 x 1" TPHMS
  • Four #12 x 1" TPHWS
  • Three 1/4-20 lead anchors

Engaged Projection

3-1/2" (89 mm)

FINISHES - TRIM

US26D - SATIN CHROMIUM

Product Overview
Automatic Wall Stop & Holder
Notes:
  • Strike is adjustable 45° left or right
  • For use with wood or metal doors and drywall or concrete walls
  • Holder has a vertical adjustment once mounted on the door
  • For doors up to 500 lbs.
  • Holder Base: 3-1/16" x 3-1/2" (78 mm x 89 mm)

Certifications:
Meets ANSI A156.16 for L11290
Finishes:
US4, US10, US10B, US26D
Notes:
  • Strike is adjustable 45° left or right
  • For use with wood or metal doors and drywall or concrete walls
  • Holder has a vertical adjustment once mounted on the door
  • For doors up to 500 lbs.
  • Holder Base: 3-1/16" x 3-1/2" (78 mm x 89 mm)
