CRL WCM236 Awning Window Operator for Tucker 2-3/8" Link Arm
Item #: WCM236 by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Used on Tucker Windows
Color
Gray
Handing
Right Hand
Fits In
Tucker Windows
Mounting Holes Top And Bottom (Inches)
5 1/16
Arm Link Hole Threaded Size (Inches)
10-24
Arm Link Length (Inches)
2 1/8

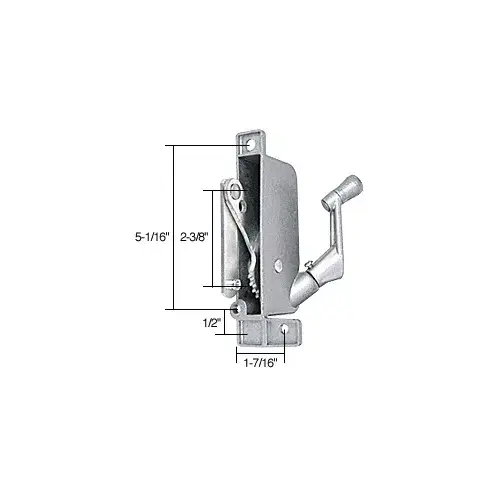

This CRL Window Operator> has two bottom screw holes which are 1-7/16" (36.5 mm) on center with a 1/2" (12.7 mm) height offset and a single top screw hole. The distance between the top and bottom screw holes is 5-1/16" (128.6 mm) on center. The straight link arm is 2-3/8" (60 mm) long with a 10-24 thread bushing at the link end. It fits on Tucker windows. Each package contains one operator with link arm.
