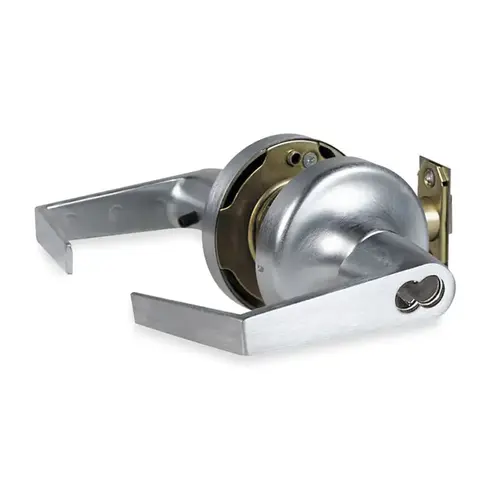

Yale Commercial B-AU5407LN 626 Entry Augusta Lever Grade 1 Cylindrical Lock with SFIC Prep Less Core, 694 Latch, and 497-114 Strike US26D (626) Satin Chrome Finish
Item #: B-AU5407LN 626 by Yale
UPC #: 049306019811
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Grade
ANSI/BHMA Grade 1
Thickness
1-3/4" - 2"
Hand
Not Handed
Color
Satin Chrome
Color Code
626/US26D
Function
07LN-Entry
Cylinder Type
SFIC Less Core-Small Format Prep
Fire Rated
3 Hours {A}
Package Volume
0
ANSI Function
F109
Bolt Protection
1/2"
Latch Backset Dim
2-3/4"
Latch Number
694
Latch Type
Dead Latch (Guarded)
Lever/Knob Design
AU - Augusta
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
3-1/2 In. Diameter
Screws
Combination
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}
Strike Height
4-7/8"
Strike Number
497
Strike Type
Curved Lip
Strike Width
1-1/4"
Base Material
Brass or Bronze
Finish
Satin Chrome
Backset
2-3/4 Inch
Finish Description
Satin Chrome
Lever Style
AU-Augusta
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Series
5400LN Series
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Projection
3.0469
Lever Length
5.0000
Door Thickness
1 3/4" - 2"
ADA Approved
False
Application
Industrial and Commercial
Warranty
7 year
Handle Type
Lever
Rose Diameter
3-1/2 Inch
Latch Throw
1/2 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
4-7/8" x 1-1/4"
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Cylinder Type Used
Small Format Interchangeable Core Less Core
Function Description
Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Function Family
Entry/Entrance/Office
Latch bolt size
2-3/4 Inch
Strike Lip
1-1/4 Inch
Product Projection
3-3/64 Inch
Trim Material
Cast Zinc (Lever); Brass (Rose)
Features
Rugged Reliability and Performance
Manufacturer Parent
Assa Abloy
Lever Length-Inches
5 Inch
Knob/Lever Size
5 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
B-AU-5407LN-626
Dimension
5-7/16" Lever Length; 3-3/64" Projection; 3-1/2" Diameter
Material
Cast Zinc
Includes Cylinder(s)
No
Hazardous Material
No
Cross Bore Size
2-1/8" Bore with 5/8" Holes for Thru Bolts
Finish code
626
Design
Augusta
Lever Knob Design
Augusta Lever
No of inners
1
Product Overview
5400LN SeriesCylindrical Lever Locks
Designed for industrial and commercial use, Yale 5400LN Series heavy-duty cylindrical lockset offers rugged reliability and performance in a range of functions. With innovative features such as our Free Wheeling lever mechanism, wear-resistant chassis plates, heavy-duty lever return springs and thrubolting, this Grade 1 workhorse is favored for a variety of applications that require reliable access every day. Offering quality door hardware products from a brand you can trust, Yale Works for You℠. MicroShield® As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silverbased antimicrobial coating designed to inhibit the growth of bacteria. MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Benefits: Heavy-Duty:- Rugged Grade 1 construction offers greater reliability and resists wear-and-tear
- Innovative features protect against damage and vandalism
- Range of functions and options offer an ideal solution for a variety of commercial applications
- Adjustable rose allows for easy adjustment on different door thicknesses
- ANSI/BHMA Grade 1 certification for long-life and durability
- Heavy duty construction features wear-resistant chassis plates, longer thread-locking thrubolts, lifetime warrantied lever return springs and stainless steel latchbolt for exceptional strength and durability
- Free Wheeling lever mechanism prevents vandalism and reduces maintenance
- Adjustable rose support plates
- Available in 3 lever designs, 24 functions (including electrified) and 12 standard finishes
- ANSI/BHMA Certified Grade 1
- ADA compliant for ease of accessibility
- 2-3/4" standard
- Adjustable for doors 1-3/4" to 2"
- Non-handed, field reversible
- 2-3/4" backset, 1/2" throw
- ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center
- Certified Grade 1, ANSI/BHMA A156.2
- Listed for 3 hour fire doors
- Certified, check local codes
- 7 years
- Bright Brass, Clear Coated
- Satin Brass, Clear Coated
- Satin Brass, Blackened, Satin Relieved, Clear Coated
- Satin Bronze, Clear Coated
- Dark Oxidized Satin Bronze - equivalent
- Satin Bronze, Blackened, and Satin Relieved, Clear Coated
- Satin Nickel Plated, Clear Coated
- Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated
- Bright Chrome Plated
- Satin Chrome Plated*
- Black Painted
- Black Suede Powder Coat
- White Suede Powder Coat
- *Finish available with MicroShield® antimicrobial coating. Add YMS suffix to order Microshield antimicrobial coating
- MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
