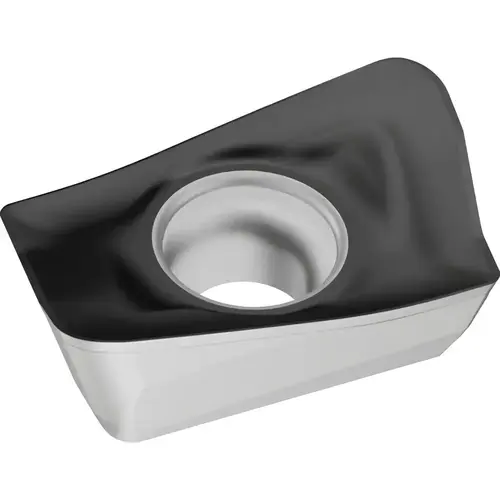

Milling Insert: ADMT120416R-F56 WKP35S, WKP35S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 5886270 Milling Insert: ADMT120416R-F56 WKP35S, WKP35S, Solid Carbide TiCN

Item #: 5886270 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$34.84

/each
SAVE UP TO 3.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 29 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Steel

ANSI Code

ADMT120416R-F56 WKP35S

Number of Cutting Edges

2

Standards

ANSI

Insert Material

Solid Carbide

Series

ADMT

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0630

Length (Decimal Inch - 4 Decimals)

0.5350

Manufacturers Catalog Number

ADMT120416R-F56

Material Grade

P35

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1875

Thickness (Inch)

3/16

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3310

Width (mm - 2 Decimals)

8.40

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.5350

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3310

Insert Shape

Parallelogram

Rake Angle

16

Chip Breaker

F56

Insert Style

ADMT

Insert Size Code

120416

Relief Angle

15.00

Included Angle Degree

85

Manufacturer Grade

WKP35S

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Single or Double Sided Insert

Single

Cutter Series Compatibility

F2010

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Corner Radius (mm)

1.60

Iso Code

ADMT120416R-F56 WKP35S

Product Overview
Milling Insert: ADMT120416R-F56 WKP35S, WKP35S, Solid Carbide Coated, 0.1874" Thick, 8.4 mm Wide
