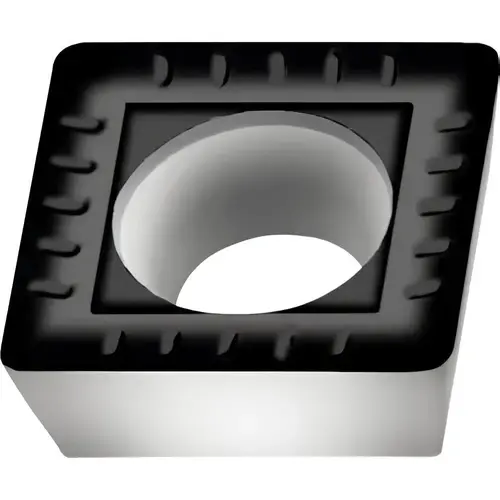

Milling Insert: SPMT120408-D51 WKP35S, WKP35S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 5917896-XCP10 Milling Insert: SPMT120408-D51 WKP35S, WKP35S, Solid Carbide - pack of 10

Item #: 5917896-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$275.28

/package
SAVE UP TO 27.53
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 63 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

SPMT120408-D51 WKP35S

Corner Radius (mm)

0.80

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Length Range (Decimal Inch)

0.5000 to 0.6000

Cutter Series Compatibility

F2239

Single or Double Sided Insert

Single

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Manufacturer Grade

WKP35S

Inscribed Circle (Inch)

1/2

Included Angle Degree

90

Relief Angle

11.00

Insert Size Code

120408

Insert Style

SPMT

Chip Breaker

D51

Rake Angle

10

Insert Shape

Square

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.5000

Insert Hand

Neutral

Rake

Positive

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.5000

Insert Holding Method

Screw

Coating Classification

CVD

Width (mm - 2 Decimals)

12.70

Width (Inch)

1/2

Width (Decimal Inch - 4 Decimals)

0.5000

Vendor Drop Ship

N

UNSPSC Code

23291601

Thickness (Inch)

3/16

Thickness (Decimal Inch - 4 Decimals)

0.1875

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

P35

Manufacturers Catalog Number

SPMT120408-D51

Length (Inch)

1/2

Length (Decimal Inch - 4 Decimals)

0.5000

Corner Radius (Decimal Inch)

0.0315

Coating/Finish

TiCN

Coating Process

CVD

Series

SPMT

Insert Material

Solid Carbide

Standards

ANSI

Number of Cutting Edges

4

ANSI Code

SPMT120408-D51 WKP35S

Material Application

Steel

Cutting Edge Style

Honed

Product Overview
Milling Insert: SPMT120408-D51 WKP35S, WKP35S, Solid Carbide Coated, 0.1874" Thick, 1/2 Wide
