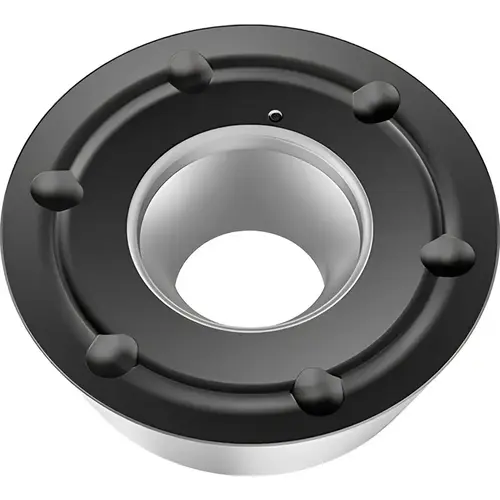

B Walter 5918053 Milling Insert: RDMT2006M0-D57 WKP35S, WKP35S, Solid Carbide TiCN
Item #: 5918053 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Material Application
Steel
ANSI Code
RDMT2006M0-D57 WKP35S
Number of Cutting Edges
4
Standards
ANSI
Insert Material
Solid Carbide
Series
RDMT
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.3937
Length (Decimal Inch - 4 Decimals)
0.7874
Manufacturers Catalog Number
RDMT2006M0-D57
Material Grade
P35
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2500
Thickness (Inch)
1/4
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.7874
Coating Classification
CVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.3937
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.7874
Insert Shape
Round
Rake Angle
10
Chip Breaker
D57
Insert Style
RDMT
Insert Size Code
2006M0
Hole Diameter (Decimal Inch)
0.2559
Relief Angle
15.00
Included Angle Degree
360
Hole Diameter (Mm) ( - 0 Decimals)
0.26
Manufacturer Grade
WKP35S
Inscribed Circle Range (Decimal Inch)
0.7000 to 1.0000
Single or Double Sided Insert
Single
Length Range (Decimal Inch)
0.7000 to 0.9000
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Inscribed Circle (mm)
20.00
Convex Radius (Decimal Inch)
0.3937
Iso Code
RDMT2006M0-D57 WKP35S
Product Overview
Milling Insert: RDMT2006M0-D57 WKP35S, WKP35S, Solid Carbide Coated, 1/4" Thick
