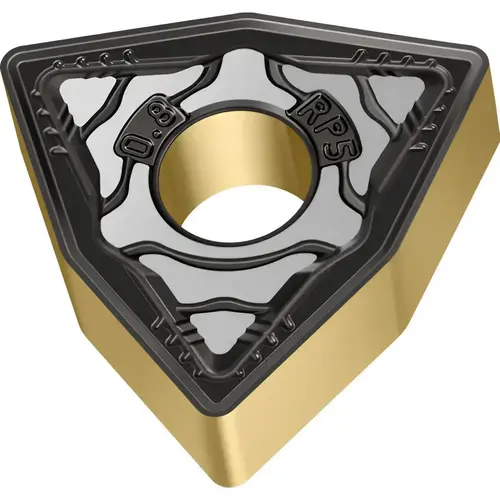

B Walter 6059613 Turning Insert: WNMG433-RP5 WPP20S, Solid Carbide TiCN
Item #: 6059613 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Insert Material
Carbide
Insert Thickness (Decimal Inch)
0.1875
Vendor Drop Ship
N
Maximum Depth of Cut (Decimal Inch)
0.2360
Maximum Depth of Cut (mm)
5.99
Iso Code
WNMG080412-RP5 WPP20S
Width (Decimal Inch - 4 Decimals)
0.6840in
Secondary Workpiece Material
Cast Iron
Relief Angle
0
Cutting Edge Style
Chamfered & Honed
Clearance Code
N
Rake
Negative
Material Grade
P20
Insert Length (Decimal Inch)
0.6840
Insert Holding Method
Clamp
Coating/Finish
TiCN
Rake Angle
17
UNSPSC Code
23242105
Corner Radius (Inch)
3/64
Insert Style
WNMG
Manufacturers Catalog Number
6059613
Insert Hand
Neutral
Proprietary Coating Designation
WPP20S
Manufacturer Grade
WPP20S
Lead Angle
80degree
Inscribed Circle (Inch)
1/2
Secondary Workpiece Material Code
K
Standards
ANSI
Inscribed Circle (Decimal Inch)
0.5000
Insert Length (mm)
8.69
Coating Process
CVD
Primary Workpiece Material
Steel
Insert Shape Code
W
Corner Radius (Decimal Inch)
0.0469
Insert Thickness (Inch)
3/16
Hole Diameter (Decimal Inch)
0.2030
Chip Breaker
RP5
Multi-Use Application
Turning
Length Range (Decimal Inch)
0.6500 - 0.7000
Multi-use Tool
Yes
Full Radius
No
Tolerance Code
M
Coating Classification
CVD
Wiper Edge
No
Insert Size Code
433
Included Angle
80degree
Number of Cutting Edges
6
Series
WNMG-RP5
Insert Shape
Trigon
Primary Workpiece Material Code
P
Product Overview
Turning Insert: WNMG433-RP5 WPP20S, Solid Carbide TiCN, Al2O3 & TiN Coated, 8.69 mm Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 80 degree Trigon, Series Tiger-tec
