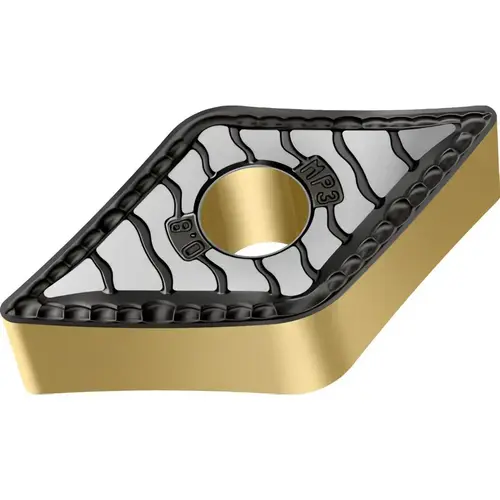

B Walter 6059693 Turning Insert: DNMG442-MP3 WPP10S, Solid Carbide TiCN
Item #: 6059693 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
4
Standards
ANSI
Included Angle
55degree
Insert Material
Carbide
Series
DNMG-MP3
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
6059693
Material Grade
P10
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5000in
Width (Inch)
1/2in
Coating Classification
CVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6104
Insert Thickness (Decimal Inch)
0.2500
Insert Thickness (Inch)
1/4
Lead Angle
55degree
Maximum Depth of Cut (Decimal Inch)
0.1260
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Cast Iron
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Insert Length (mm)
15.49
Corner Radius (Inch)
1/32
Insert Shape
Diamond 55
Clearance Code
N
Rake Angle
22.5
Full Radius
No
Insert Shape Code
D
Chip Breaker
MP3
Secondary Workpiece Material Code
K
Insert Style
DNMG
Insert Size Code
442
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2030
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Turning
Maximum Depth of Cut (mm)
3.20
Manufacturer Grade
WPP10S
Length Range (Decimal Inch)
0.6000 - 0.6500
Proprietary Coating Designation
WPP10S
Iso Code
DNMG150608-MP3 WPP10S
Product Overview
Turning Insert: DNMG442-MP3 WPP10S, Solid Carbide TiCN, Al2O3 & TiN Coated, 15.49 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series Tiger-tec
