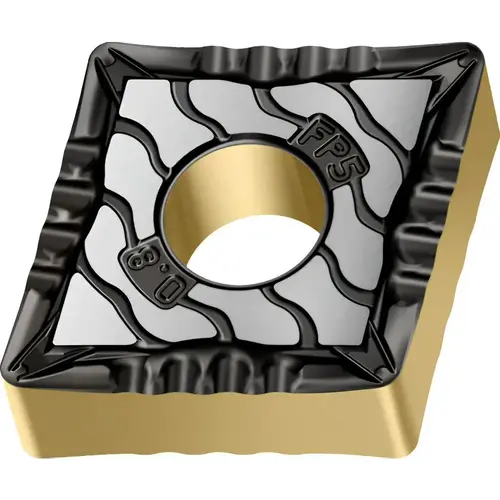

Turning Insert: CNMG431-FP5 WPP10S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6059742 Turning Insert: CNMG431-FP5 WPP10S, Solid Carbide TiCN

Item #: 6059742 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$25.83

/each
SAVE UP TO 2.58
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-FP5

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

6059742

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5080in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.0590

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/64

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

16

Full Radius

No

Insert Shape Code

C

Chip Breaker

FP5

Secondary Workpiece Material Code

K

Insert Style

CNMG

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

1.50

Manufacturer Grade

WPP10S

Length Range (Decimal Inch)

0.5000 - 0.6000

Proprietary Coating Designation

WPP10S

Iso Code

CNMG120404-FP5 WPP10S

Product Overview
Turning Insert: CNMG431-FP5 WPP10S, Solid Carbide TiCN, Al2O3 & TiN Coated, 12.9 mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series Tiger-tec
