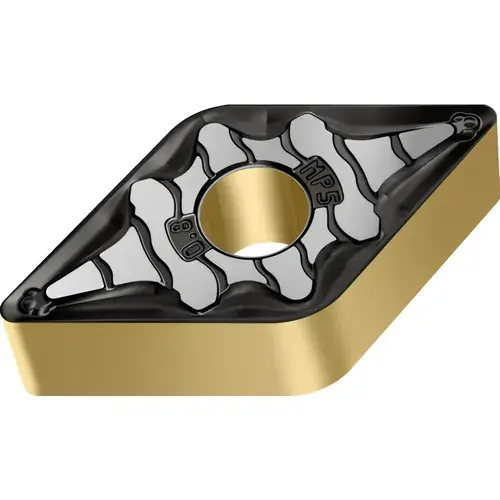

B Walter 6059766 Turning Insert: DNMG442-MP5 WPP30S, Solid Carbide TiCN
Item #: 6059766 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
4
Standards
ANSI
Included Angle
55degree
Insert Material
Carbide
Series
DNMG-MP5
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
6059766
Material Grade
P30
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.5000in
Width (Inch)
1/2in
Coating Classification
CVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6104
Insert Thickness (Decimal Inch)
0.2500
Insert Thickness (Inch)
1/4
Lead Angle
55degree
Maximum Depth of Cut (Decimal Inch)
0.1970
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Insert Length (mm)
15.49
Corner Radius (Inch)
1/32
Insert Shape
Diamond 55
Clearance Code
N
Rake Angle
15
Full Radius
No
Insert Shape Code
D
Chip Breaker
MP5
Secondary Workpiece Material Code
M
Insert Style
DNMG
Insert Size Code
442
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2030
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Turning
Maximum Depth of Cut (mm)
5.00
Manufacturer Grade
WPP30S
Length Range (Decimal Inch)
0.6000 - 0.6500
Proprietary Coating Designation
WPP30S
Iso Code
DNMG150608-MP5 WPP30S
Product Overview
Turning Insert: DNMG442-MP5 WPP30S, Solid Carbide TiCN, Al2O3 & TiN Coated, 15.49 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series Tiger-tec
