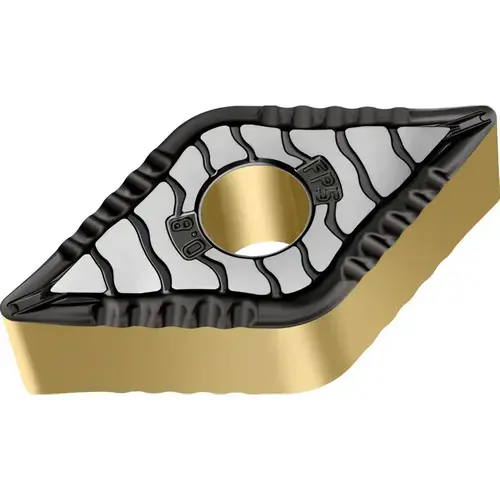

B Walter 6065881 Turning Insert: DNMG332-FP5 WPP20S, Solid Carbide TiCN
Item #: 6065881 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
4
Standards
ANSI
Included Angle
55degree
Insert Material
Carbide
Series
DNMG-FP5
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0315
Manufacturers Catalog Number
6065881
Material Grade
P20
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
CVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.4580
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Lead Angle
55degree
Maximum Depth of Cut (Decimal Inch)
0.0790
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Cast Iron
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Insert Length (mm)
11.61
Corner Radius (Inch)
1/32
Insert Shape
Diamond 55
Clearance Code
N
Rake Angle
16
Full Radius
No
Insert Shape Code
D
Chip Breaker
FP5
Secondary Workpiece Material Code
K
Insert Style
DNMG
Insert Size Code
332
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1500
Relief Angle
0
Inscribed Circle (Inch)
3/8
Multi-Use Application
Turning
Maximum Depth of Cut (mm)
2.01
Manufacturer Grade
WPP20S
Length Range (Decimal Inch)
0.4000 - 0.5000
Proprietary Coating Designation
WPP20S
Iso Code
DNMG110408-FP5 WPP20S
Product Overview
Turning Insert: DNMG332-FP5 WPP20S, Solid Carbide TiCN, Al2O3 & TiN Coated, 11.61 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series Tiger-tec
