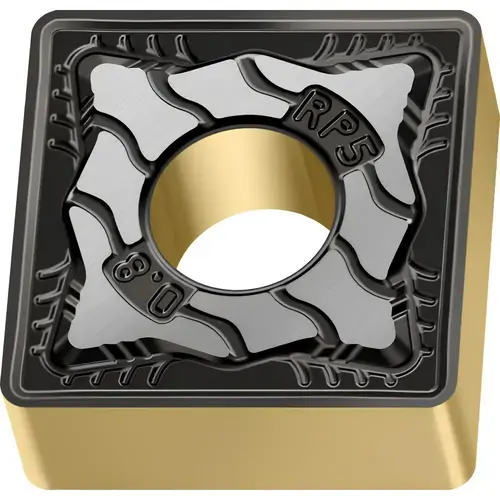

Turning Insert: SNMG432-RP5 WPP20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6176688 Turning Insert: SNMG432-RP5 WPP20S, Solid Carbide TiCN

Item #: 6176688 by B. Walter & Co.

See reviewsSee reviews
See reviews summary

$25.83

/each
SAVE UP TO 2.58
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

8

Standards

ANSI

Included Angle

90degree

Insert Material

Carbide

Series

SNMG-RP5

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6176688

Material Grade

P20

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Width (mm - 2 Decimals)

12.70

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5000

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

90degree

Maximum Depth of Cut (Decimal Inch)

0.2360

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.70

Corner Radius (Inch)

1/32

Insert Shape

Square

Clearance Code

N

Rake Angle

17

Full Radius

No

Insert Shape Code

S

Chip Breaker

RP5

Secondary Workpiece Material Code

K

Insert Style

SNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Insert Length (Inch)

1/2

Maximum Depth of Cut (mm)

5.99

Manufacturer Grade

WPP20S

Length Range (Decimal Inch)

0.5000 - 0.6000

Proprietary Coating Designation

WPP20S

Iso Code

SNMG120408-RP5 WPP20S

Product Overview
Turning Insert: SNMG432-RP5 WPP20S, Solid Carbide TiCN, Al2O3 & TiN Coated, 12.7 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 90 degree Square, Series Tiger-tec
