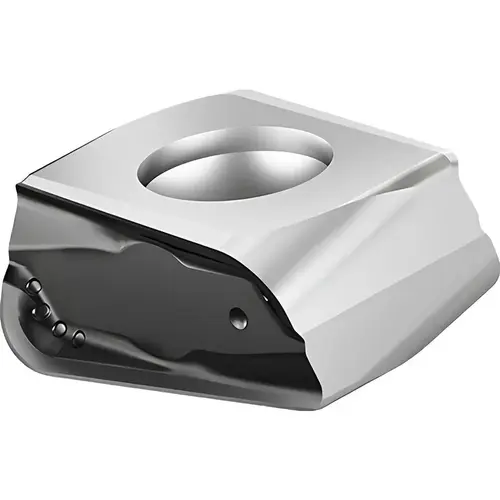

B Walter 6192409 Milling Insert: LNHU090420R-L55T WKP35S, WKP35S, Solid Carbide TiCN
Item #: 6192409 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered
Material Application
Steel
ANSI Code
LNHU090420R-L55T WKP35S
Number of Cutting Edges
4
Standards
ANSI
Insert Material
Solid Carbide
Series
LNHU
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0787
Length (Decimal Inch - 4 Decimals)
0.3540
Manufacturers Catalog Number
LNHU090420R-L55T
Material Grade
P35
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1770
UNSPSC Code
23291601
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.3350
Coating Classification
CVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.3540
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.1770
Insert Shape
Rectangle
Rake Angle
28
Chip Breaker
L55T
Insert Style
LNHU
Insert Size Code
090420
Relief Angle
0.00
Included Angle Degree
90
Manufacturer Grade
WKP35S
Inscribed Circle Range (Decimal Inch)
0.0000 to 0.2500
Single or Double Sided Insert
Double
Cutter Series Compatibility
F2010
Length Range (Decimal Inch)
0.3200 to 0.4000
Thickness Range (Decimal Inch)
0.1750 to 0.1850
Corner Radius (mm)
2.00
Iso Code
LNHU090420R-L55T WKP35S
Product Overview
Milling Insert: LNHU090420R-L55T WKP35S, WKP35S, Solid Carbide Coated, 0.1772" Thick, 0.3543" Wide
