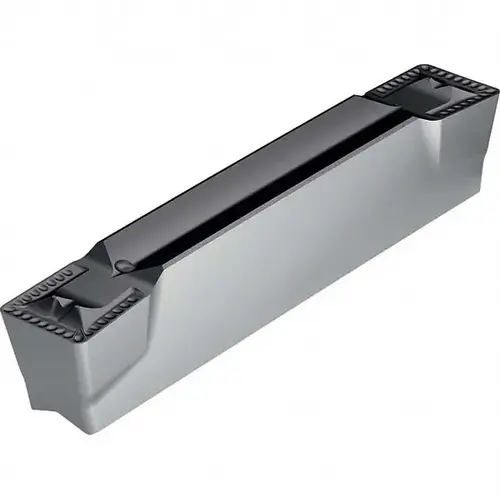

Grooving Insert: GX3E500N08UD4 WSM33S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6193846-XCP10 Grooving Insert: GX3E500N08UD4 WSM33S, Solid Carbide - pack of 10

Item #: 6193846-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$521.24

/package
SAVE UP TO 52.12
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

GX243E500N08UD4 WSM33S

Standards

ANSI

Insert Material

Carbide

Series

Tiger-tec Silver

Coating Process

PVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

GX24-3E500N08-UD4

Material Grade

S30

Overall Length (Decimal Inch)

0.9449in

Primary Workpiece Material

Superalloys

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1969in

Insert Holding Method

Clamp

Maximum Depth of Cut (Decimal Inch)

0.1181

Multi-use Tool

Yes

Insert Hand

Neutral

Full Radius

No

Chip Breaker

UD4

Insert Style

GX

Insert Size Code

3E500N08

Maximum Depth of Cut (mm)

3.00

Manufacturer Grade

WSM33S

Maximum Depth Of Cut Range (Decimal Inch)

0.1000 to 0.1500

Maximum Depth Of Cut Range (mm)

3.00 to 4.00

Corner Radius (mm)

0.80

Cutting Width (mm)

5.00

Iso Code

GX24-3E500N08-UD4

Product Overview
Grooving Insert: GX3E500N08UD4 WSM33S, Solid Carbide Al2O3, TiAlN & ZrCN Finish, Neutral, 5 mm Cutting Width, 3 mm Max Depth, Series Tiger-tec Silver
