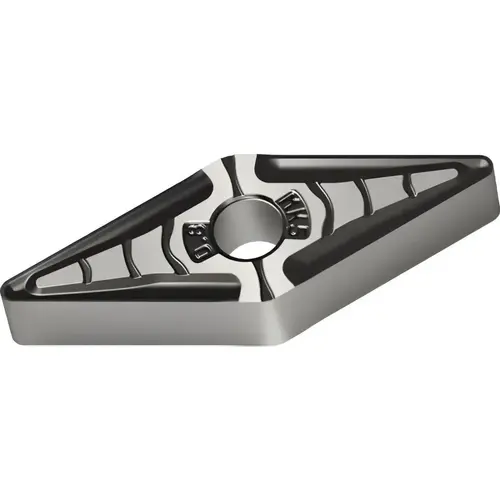

Turning Insert: VNMG331-MK5 WKK10S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6361397 Turning Insert: VNMG331-MK5 WKK10S, Solid Carbide TiCN

Item #: 6361397 by B. Walter & Co.

See reviewsSee reviews
See reviews summary

$46.04

/each
SAVE UP TO 4.60
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

35degree

Insert Material

Carbide

Series

VNMG-MK5

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

6361397

Material Grade

H30

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6540

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

35degree

Maximum Depth of Cut (Decimal Inch)

0.1575

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Hard Material

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

Diamond 35

Clearance Code

N

Rake Angle

14

Full Radius

No

Insert Shape Code

V

Chip Breaker

MK5

Secondary Workpiece Material Code

H

Insert Style

VNMG

Insert Size Code

331

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

4.00

Manufacturer Grade

WKK10S

Length Range (Decimal Inch)

0.6500 - 0.7000

Proprietary Coating Designation

WKK10S

Iso Code

VNMG160404-MK5 WKK10S

Product Overview
Turning Insert: VNMG331-MK5 WKK10S, Solid Carbide TiCN, Al2O3 & TiCN Coated, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series Tiger-tec Silver
