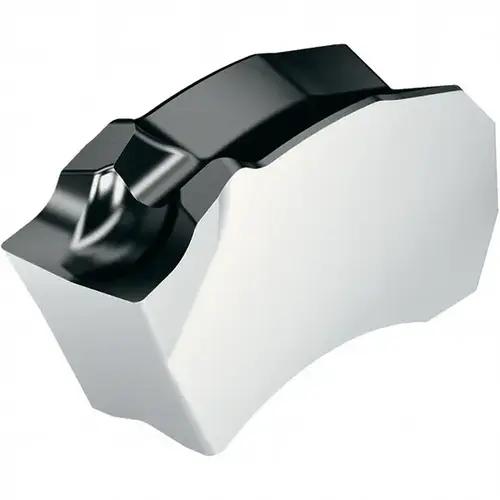

B Walter 6422456 SX-2E200N02-CF5 WSM33S Carbide Cutoff Insert TiAlN
Item #: 6422456 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ANSI
Chipbreaker
CF5
Insert Material
Solid Carbide
Series
Tiger-tec Silver
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0079
Manufacturers Catalog Number
SX-2E200N02-CF5
Material Grade
S30
Primary Workpiece Material
Superalloy
Primary Workpiece Material Code
M
Vendor Drop Ship
N
Cutting Tool Application
Slitting
Cutting Width (Decimal Inch)
0.0787
Insert Holding Method
Clamp
Multi-use Tool
No
Single Or Double End
Single
Insert Hand
Neutral
Full Radius
No
Insert Style
SX
Insert Size Code
2E200N02
Manufacturer Grade
WSM33S
Lead Angle Direction
Neutral
Corner Radius (mm)
0.20
Cutting Width (mm)
2.00
Iso Code
SX-2E200N02-CF5 WSM33S
Product Overview
SX-2E200N02-CF5 WSM33S Carbide Cutoff Insert TiAlN/Al2O3/Al Finish, Neutral Lead Angle, Neutral Insert, 2mm Cutting Width, 0.2mm Corner Radius, Series Tiger-tec Silver
