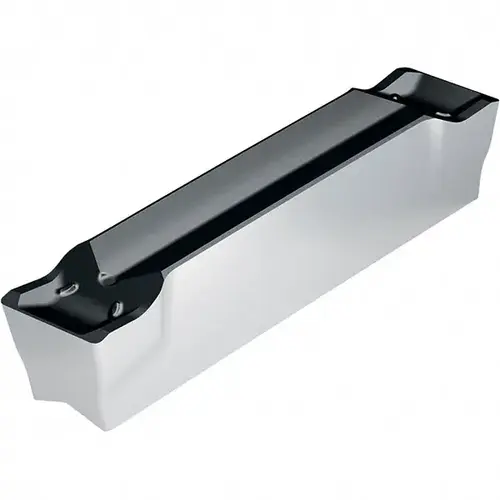

Grooving Insert: GX243CE4 WKP23S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6529718-XCP10 Grooving Insert: GX243CE4 WKP23S, Solid Carbide - pack of 10

Item #: 6529718-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$491.64

/package
SAVE UP TO 49.16
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 80 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

GX24-3E400N03-CE4 WKP23S

Overall Length (mm)

24.00

Standards

ANSI

Insert Material

Solid Carbide

Series

GX24

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0120

Overall Length (Decimal Inch)

0.9450

Overall Width (Decimal Inch - 4 Decimals)

0.1570

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1570

Insert Holding Method

Self Grip

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.9450

Multi-use Tool

Yes

Overall Width (mm)

4.00

Rake

Positive

Secondary Workpiece Material

Cast Iron

Single Or Double End

Double

Insert Hand

Neutral

Full Radius

No

Chip Breaker

CE4

Secondary Workpiece Material Code

K

Insert Style

GX24

Insert Size Code

3E400N03

Maximum Depth of Cut (mm)

24.00

Cutting Height (Decimal Inch)

0.1610

Manufacturer Grade

WKP23S

Maximum Depth Of Cut Range (Decimal Inch)

0.3000 to 1.0000

Maximum Depth Of Cut Range (mm)

20.00+

Corner Radius (mm)

0.30

Cutting Width (mm)

4.00

Iso Code

GX24-3E400N03-CE4 WKP23S

Cutting Height (mm)

4.09

Product Overview
Grooving Insert: GX243CE4 WKP23S, Solid Carbide Al2O3 & TiN Finish, Neutral, 4 mm Cutting Width, 24 mm Max Depth, Series GX24
