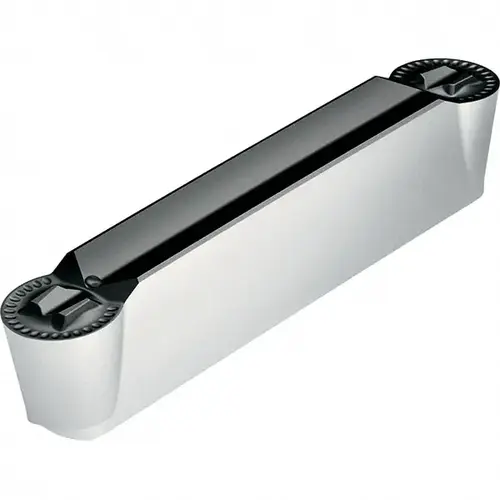

Grooving Insert: GX246RD4 WKP23S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6529727-XCP10 Grooving Insert: GX246RD4 WKP23S, Solid Carbide - pack of 10

Item #: 6529727-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$565.46

/package
SAVE UP TO 56.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Height (mm)

4.09

Iso Code

GX24-4E600N30-RD4 WKP23S

Cutting Width (mm)

6.00

Corner Radius (mm)

3.00

Maximum Depth Of Cut Range (mm)

3.00 to 4.00

Maximum Depth Of Cut Range (Decimal Inch)

0.1000 to 0.1500

Manufacturer Grade

WKP23S

Cutting Height (Decimal Inch)

0.1610

Maximum Depth of Cut (mm)

3.00

Insert Size Code

4E600N30

Insert Style

GX24

Secondary Workpiece Material Code

K

Chip Breaker

RD4

Full Radius

Yes

Insert Hand

Neutral

Single Or Double End

Double

Secondary Workpiece Material

Cast Iron

Rake

Positive

Overall Width (mm)

6.00

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.1180

Lead Angle

90

Insert Holding Method

Self Grip

Cutting Width (Decimal Inch)

0.2360

Vendor Drop Ship

N

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Overall Width (Decimal Inch - 4 Decimals)

0.2360

Overall Length (Decimal Inch)

0.9450

Corner Radius (Decimal Inch)

0.1180

Coating/Finish

Al2O3

Coating Process

CVD

Series

GX24

Insert Material

Solid Carbide

Standards

ANSI

Overall Length (mm)

24.00

ANSI Code

GX24-4E600N30-RD4 WKP23S

Product Overview
Grooving Insert: GX246RD4 WKP23S, Solid Carbide Al2O3 & TiN Finish, Neutral, 6 mm Cutting Width, 3 mm Max Depth, Series GX24
