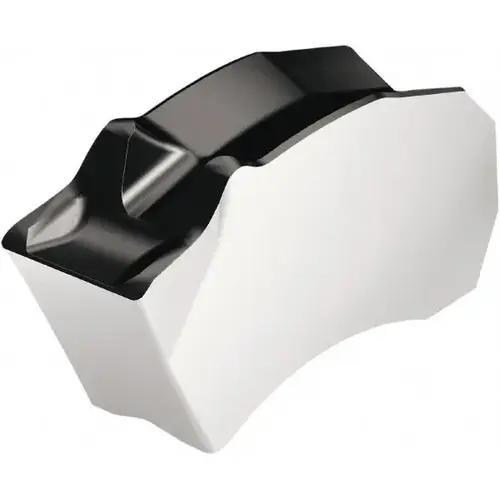

Grooving Insert: SX3CE4 WSM33S, Solid Carbide Al2O3

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6572447 Grooving Insert: SX3CE4 WSM33S, Solid Carbide Al2O3

Item #: 6572447 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$28.38

/each
SAVE UP TO 2.84
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 142 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Maximum Depth of Cut (mm)

50.00

Cutting Height (Decimal Inch)

0.1850

Manufacturer Grade

WSM33S

Maximum Depth Of Cut Range (Decimal Inch)

1.0000+

Maximum Depth Of Cut Range (mm)

20.00+

Corner Radius (mm)

0.20

Cutting Width (mm)

3.00

Iso Code

SX-3E300R6-CE4 WSM33S

Cutting Height (mm)

4.70

Insert Size Code

3E300R6

Insert Style

SX

Chip Breaker

CE4

Full Radius

No

Insert Hand

Right Hand

Single Or Double End

Single

Rake

Positive

Overall Width (mm)

3.00

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

1.9690

Lead Angle

84

Insert Holding Method

Self Grip

Cutting Width (Decimal Inch)

0.1180

Vendor Drop Ship

N

Primary Workpiece Material Code

M

Primary Workpiece Material

Superalloy

Overall Width (Decimal Inch - 4 Decimals)

0.1180

Overall Length (Inch)

1/2

Overall Length (Decimal Inch)

0.5000

Corner Radius (Decimal Inch)

0.0080

Coating/Finish

Al2O3

Coating Process

PVD

Series

SX

Insert Material

Solid Carbide

Standards

ANSI

Overall Length (mm)

12.70

ANSI Code

SX-3E300R6-CE4 WSM33S

Product Overview
Grooving Insert: SX3CE4 WSM33S, Solid Carbide Al2O3 & TiN Finish, Right Hand, 3 mm Cutting Width, 50 mm Max Depth, Series SX
