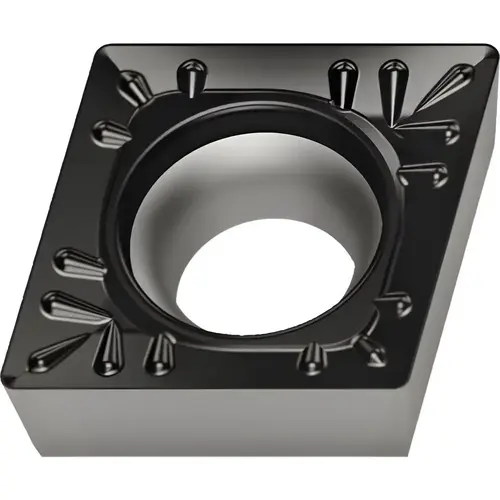

Turning Insert: CCMT432-RK4 WKK10S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6650918-XCP10 Turning Insert: CCMT432-RK4 WKK10S, Solid Carbide - pack of 10

Item #: 6650918-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
HURRY! Low in stock

$299.95

/package
SAVE UP TO 29.99
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CCMT-RK4

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6650918

Material Grade

H30

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5080in

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.2000

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Hard Material

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond 80

Clearance Code

C

Rake Angle

12

Full Radius

No

Insert Shape Code

C

Chip Breaker

RK4

Secondary Workpiece Material Code

H

Insert Style

CCMT

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2170

Relief Angle

7

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

5.00

Manufacturer Grade

WKK10S

Length Range (Decimal Inch)

0.5000 - 0.6000

Inscribed Circle (mm)

12.70

Proprietary Coating Designation

WKK10S

Iso Code

CCMT120408-RK4 WKK10S

Product Overview
Turning Insert: CCMT432-RK4 WKK10S, Solid Carbide TiCN & Al2O3 Coated, Neutral, 0.5077" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CCMT
