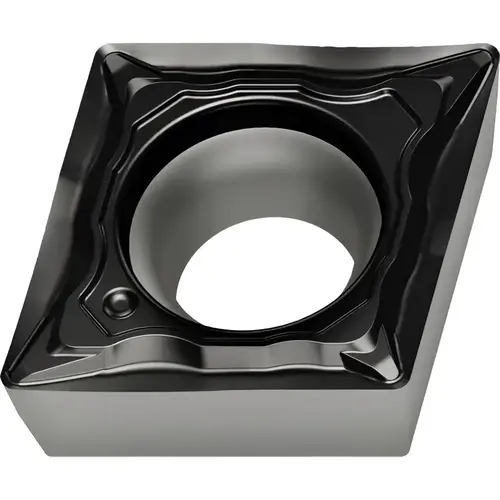

Turning Insert: CCMT09T302-FM4 WSM20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6839031 Turning Insert: CCMT09T302-FM4 WSM20S, Solid Carbide TiCN

Item #: 6839031 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$20.88

/each
SAVE UP TO 2.09
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 253 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Insert Thickness

3.97

Included Angle

80degree

Insert Material

Carbide

Series

CCMT-FM4

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0080

Manufacturers Catalog Number

6839031

Material Grade

M20

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3810in

Width (mm - 2 Decimals)

9.67

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3810

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.3810

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.67

Corner Radius (Inch)

1/128

Insert Shape

Diamond 80

Clearance Code

C

Rake Angle

6

Full Radius

No

Insert Shape Code

C

Chip Breaker

FM4

Secondary Workpiece Material Code

P

Insert Style

CCMT

Insert Size Code

32.50.5

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

9.67

Manufacturer Grade

WSM20S

Length Range (Decimal Inch)

0.3000 - 0.4000

Inscribed Circle (mm)

9.53

Corner Radius (mm)

0.20

Proprietary Coating Designation

WSM20S

Iso Code

CCMT09T302-FM4 WSM20S

Product Overview
Turning Insert: CCMT09T302-FM4 WSM20S, Solid Carbide TiAlN, Al2O3 & Al Coated, Neutral, 9.67 mm Long, 9.53 mm Inscribed Circle, 0.2 mm Corner Radius, 80 degree Diamond, Series CCMT-FM4
